FT-111(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 118 of 146
CC-Link Configuration
The weighing indicator has occupied one station area on CC-Link network and station type of weighing indicator must be
programmed as ‘Remote device station’ in the PLC software. CC-Link configuration for PLC programmers is shown in
Figure 10.8.

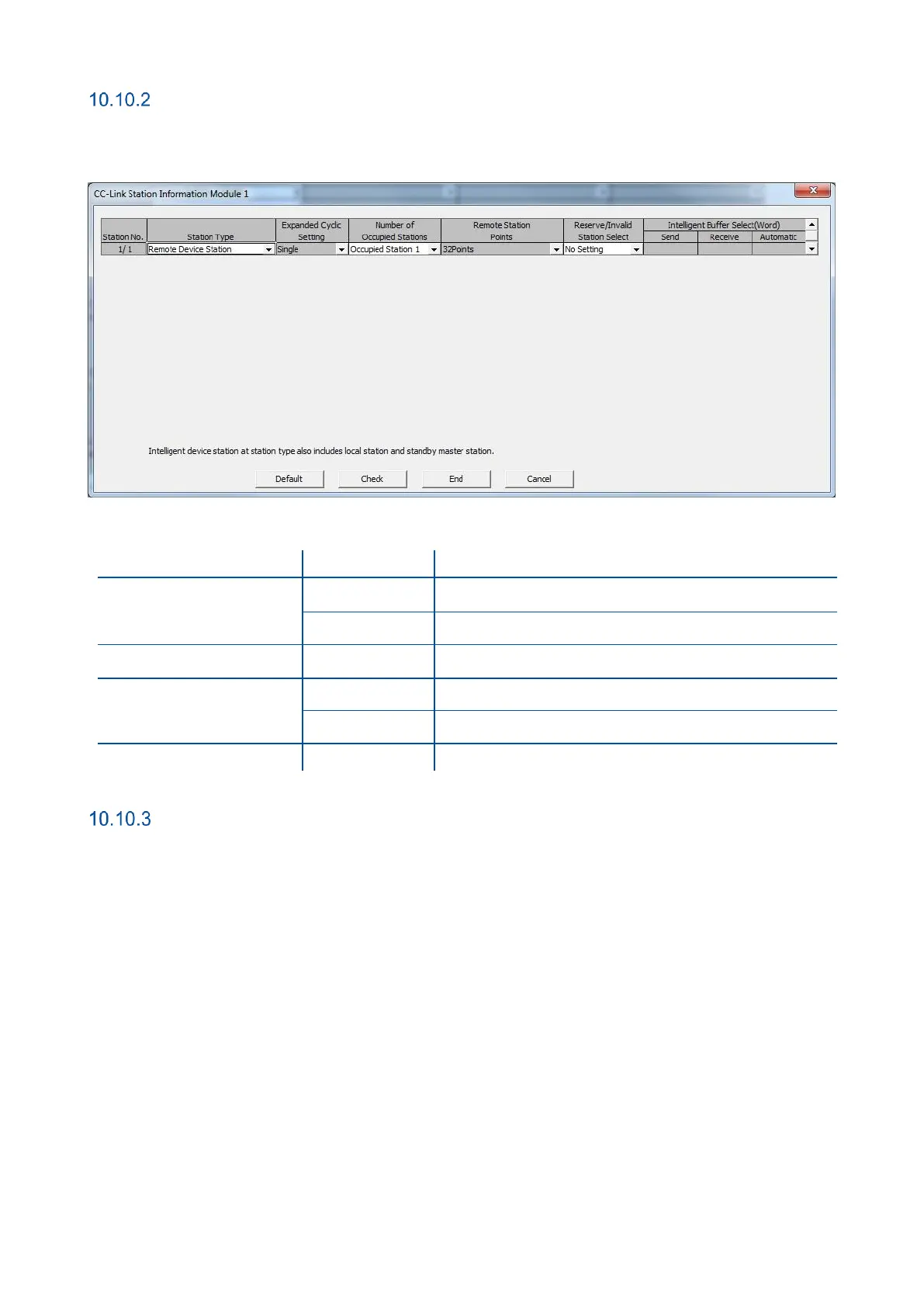

Figure 10.8 – Station information
Input/Output
Definition
Description
Remote Register (RWr)
RWr0, RWr1
1
st
Dword Input (FT-111 Output to PLC Input)
RWr2, RWr3
2
nd
Dword Input (FT-111 Output to PLC Input)
Remote Input (RX)
RX0 ~ RX31
Not used
Remote Register (RWw)
RWw0, RWw1
1
st
Dword Output (PLC Output to FT-111 Input)
RWw2, RWw3
2
nd
Dword Output (PLC Output to FT-111 Input)
Remote Output (RY)
RY0 ~ RY31
Not used
CC-Link Data Structure
For the Data Structure for CC-Link see Appendix 1, page 123
