Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer.
Refer to parameter [ 191 ].
Profinet Parameters
Profinet parameters can be adjusted by keys in programming mode. Refer to parameter block [ 19- ]. Additionally, Profinet
parameters set up is done by Indface2x PC software over Local Network Area or by Flintec set up PC software. Both
softwares are available on www.flintec.com.
Note: Station name is ‘scale-1’ as a default.
GSDML Configuration
Profinet data consist of 2 pcs Input-2 words and 2 pcs Output-2 words. GSDML configuration for PLC programmers is
shown in Figure 10.3.

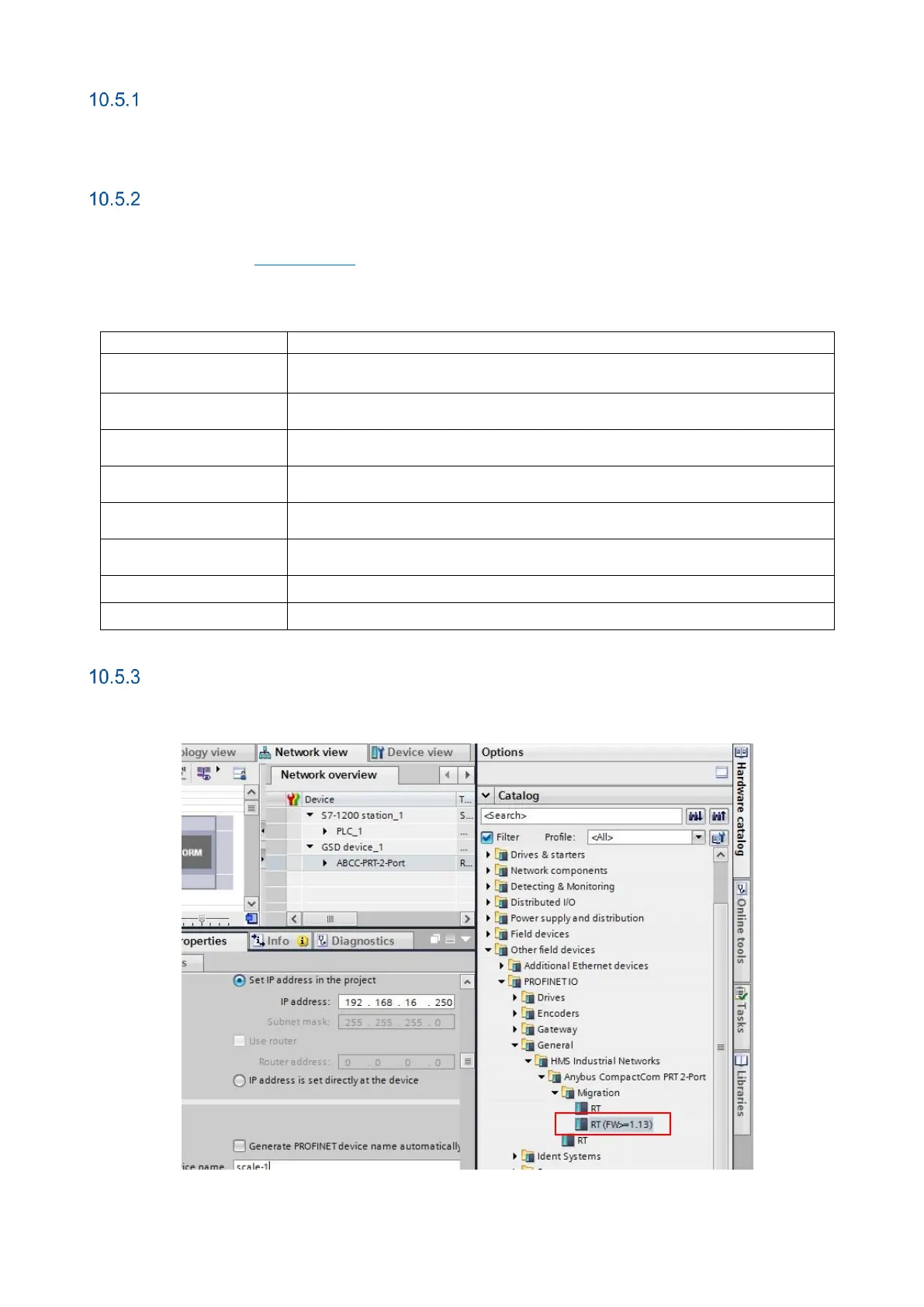

Figure 10.2 – Location of Hardware catalog
Parameters
Descriptions
DHCP
Dynamic Host Configuration Protocol automates network parameters if it is
enabled.
Host Name
Device name of the instrument.
Refer to parameter 196.
IP Address
If DHCP is disabled, obtain IP address manually.
Refer to parameter 192.
Gateway
If DHCP is disabled, obtain default gateway manually.
Refer to parameter 195.
Subnet Mask
If DHCP is disabled, obtain subnet mask manually.
Refer to parameter 194.
Primary DNS
If DHCP is disabled, obtain primary DNS manually.
Refer to parameter 199.
Secondary DNS
If DHCP is disabled, obtain secondary DNS manually.
Password
Default password is 123456.
