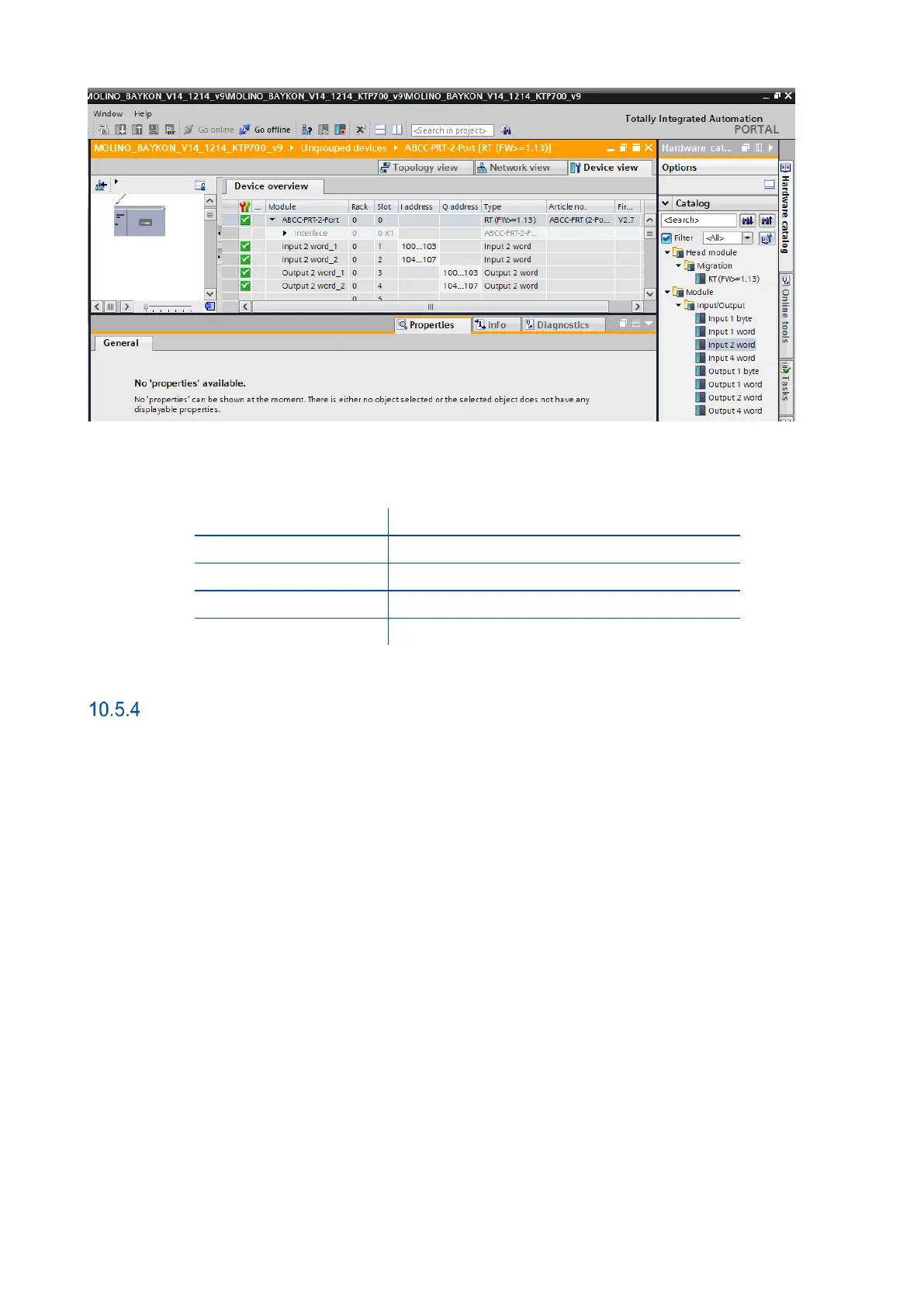

Figure 10.3 - GSDML Configuration
GSDML Configuration
Description
Input 2 word_1
1
st
Dword (FT-111 Output to PLC Input)
Input 2 word_2
2
nd
Dword (FT-111 Output to PLC Input)
Output 2 word_1
1
st
Dword (PLC Output to FT-111 Input)
Output 2 word_2
2
nd
Dword (PLC Output to FT-111 Input)
Profinet Data Structure
For the Data Structure for Profinet see Appendix 1, page 123
