10.5 Profinet
Profinet interface of the weighing instrument can be done via hub switch or serial bus over two Profinet port.
1. Serial bus connection. You may connect instruments serial to your Profinet bus via two ports.
2. Star connection. If you connect the instrument to your PLC via hub switch, you can use P1 or P2 port
on the instrument. You may change the port, if there is any malfunction on port in usage.
The Profinet interface is 100Mbit and full duplex.
GSDML file for two port Profinet is available in on internet www.flintec.com.
There are 4 announcement LEDs on the instrument to indicate the interface status as seen below. The meanings of these
LED’s are;
(A) Network Status LED
LED State
Description
Comment
Off
Not online /No power
Check power and cable
Green
On-line RUN
-
Green, flashing
On-line STOP
-
(B) Module Status LED
LED State
Description
Comment
Off
Not power or not initialized
No power or Profinet module is in
initialization state
Green
Normal operation
Green, 1 flash
Initialized, diagnostic
event(s) present
Diagnostic is active
Red
Exception error
There is an exception error
Red, 1 flash
Configuration Error
Check GSDML configuration
Red, 2 flashes
IP Address Error
IP address not set
Red, 3 flashes
Device Name Error
Device name not set
Red, 4 flashes
Internal Module Error
Re-energize the instrument.
If seen again, change the board.
In the case of red LED warning, check cabling, configuration, IP address and device name. Power off the
instrument and reenergize the instrument 30 seconds later.
LINK/Activity LED
LED State
Description
Comment
Off
No Link
No link, no communication present
Green
Link
Ethernet link established, no
communication present
Green, flickering
Activity
Ethernet link established,
communication present

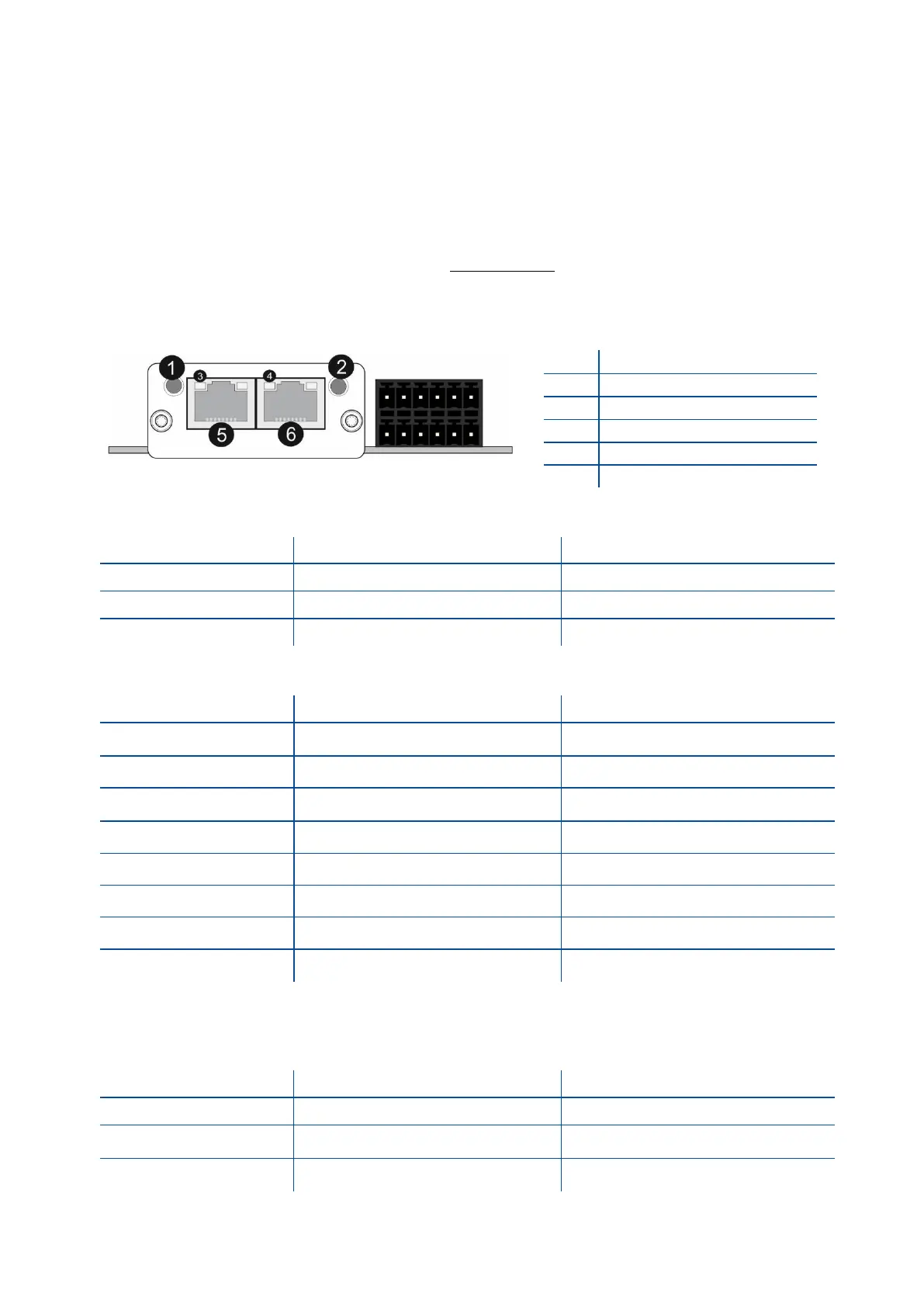

1
(A) Network Status LED
2
(B) Module Status LED
3
Link/Activity LED (port 1)
4
Link/Activity LED (port 2)
5
P1 interface (port 1)
6
P2 interface (port 2)
