10.7 CANopen
After setting related parameters you can communicate with FT-111 via CANopen network.
EDS file is available in on internet www.flintec.com.
Automatically detected and supported baud rates are 10 kbps, 50 kbps, 100 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps,
1 Mbps, Autobaud (default).
There are 2 LED’s near the CANopen connector which are;
(A) Run LED
State
Indication
Comment
Off
Not online / No power
Check power and cable
Green
On-line, data exchange
-
Green, blinking
On-line, initializing
-
Green, single flash
Stopped
Check hardware damages
Green, flickering
Auto baudrate detection in progress
-
Red
CANopen configuration error
Check EDS file
(B) Error LED
State
Indication
Comment
Off
-
No power or CANopen module is in
initialization state
Red, single flash
Warning limit reached
A bus error counter reached or exceeded
its warning level
Red, flickering
LSS
LSS services in progress
Red, double flash
Error count event
A guard- (NMT-Slave or NMT-master) or
heartbeat event (Heartbeat consumer)
has occurred.
Red
Bus off (Fatal Event)
Bus off.
Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer. Refer to parameter
[ 191 ].
1

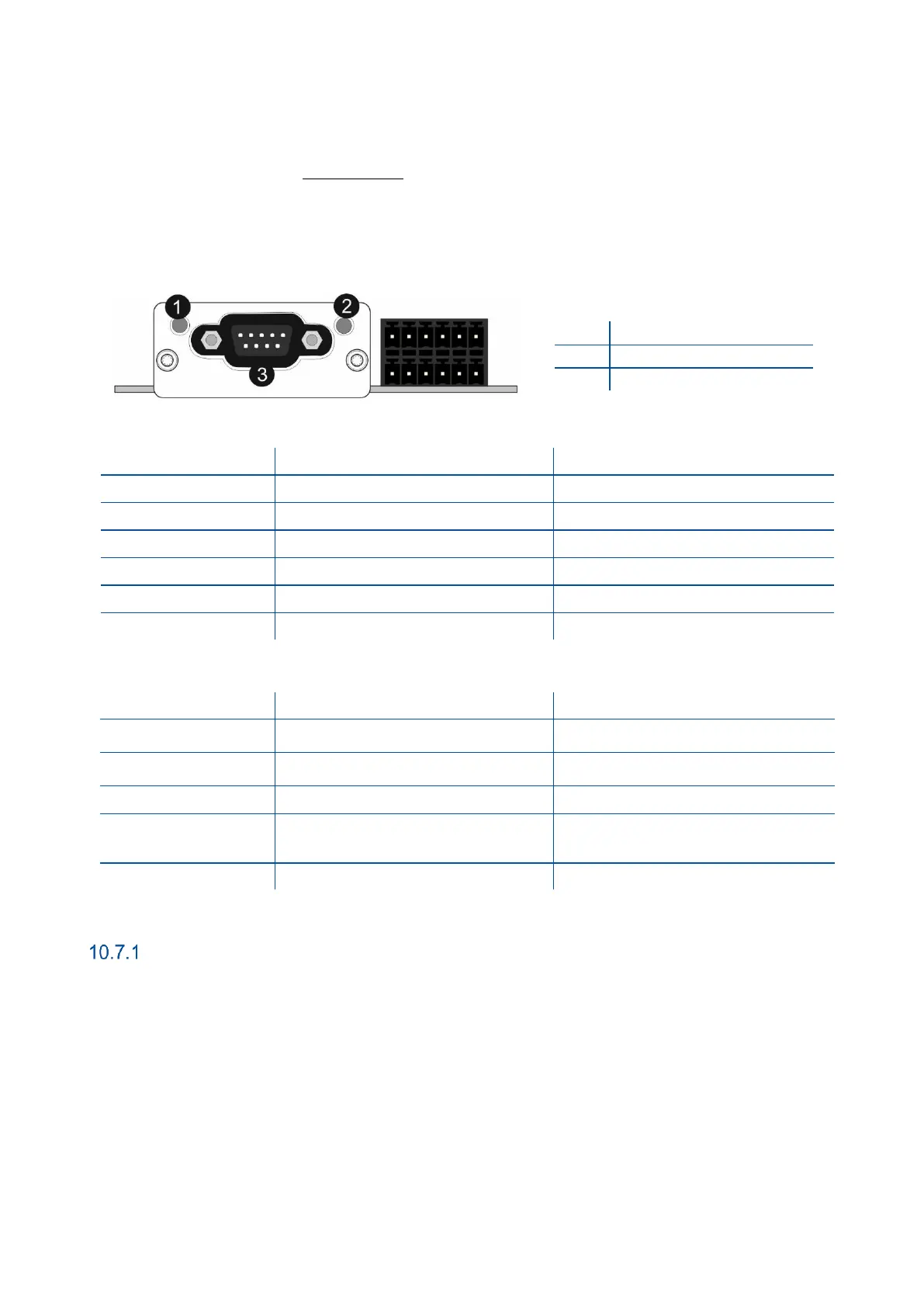

(A) RUN LED
2
(B) ERROR LED
3
CANopen interface
