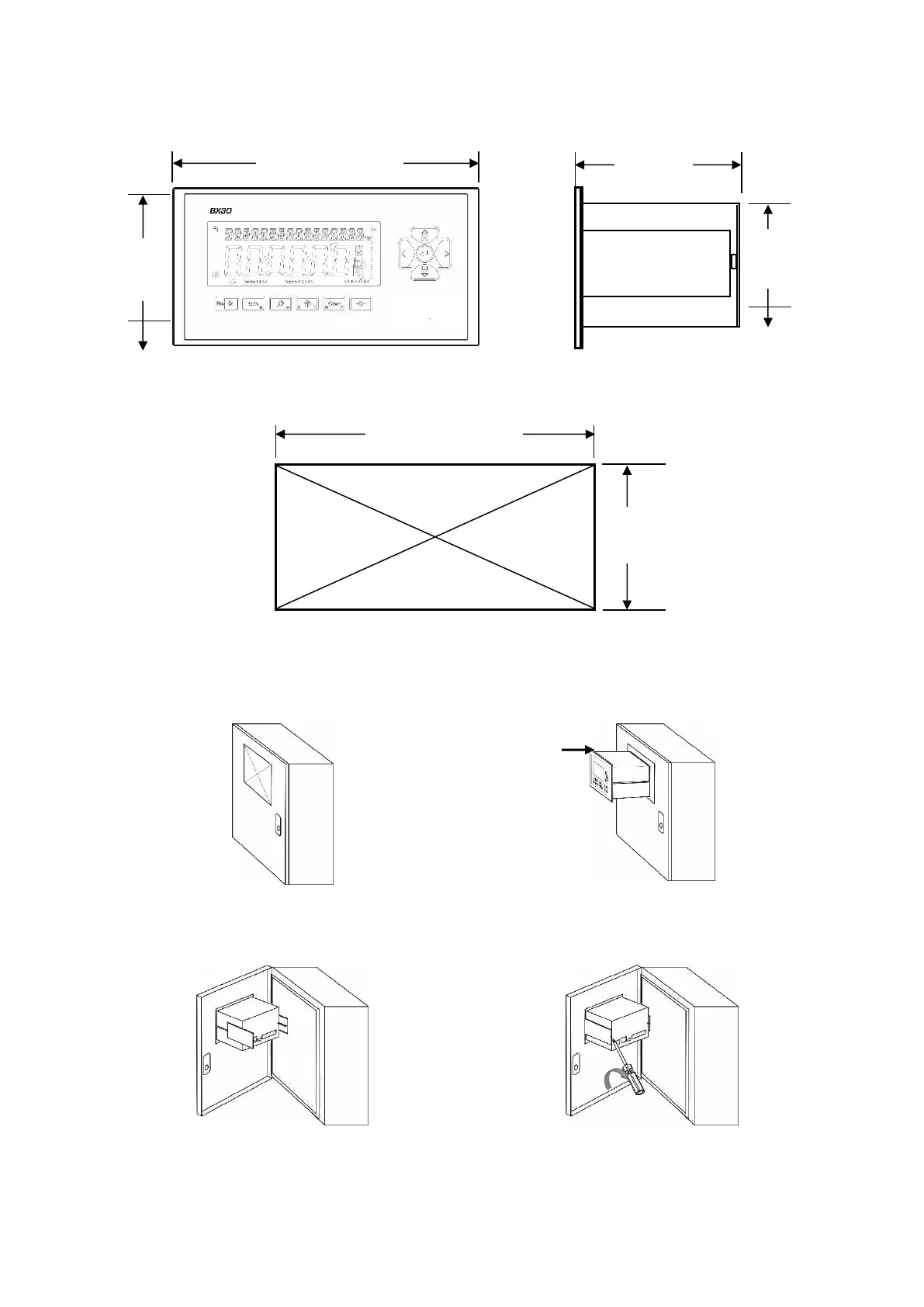

4.4 Housing
Front view Side view
Panel cut sizes
4.5 Mechanical Installation
Cut the panel of the cabinet to install the
instrument..
Insert the instrument to the cut on the panel after
placing the waterproof sealing rubber behind the
panel of FT-111.
Place holder parts of the instrument to the both
side of the instrument.
Use 2 pcs M4 screws to mount the instrument to
the panel after alignment.
112,5 mm
( 4.43" )
91 mm
( 3.58" )
205mm ( 8.07" )
108 mm
( 4.25" )
186 mm ( 7.32" )
92 mm
( 3.62" )
