Digital Inputs:
FT-111 digital inputs are programmable for zeroing, taring, clear, print, key lock, dynamic weighing start/reset, basic peak,
hold and as a fieldbus Remote input at basic weighing.

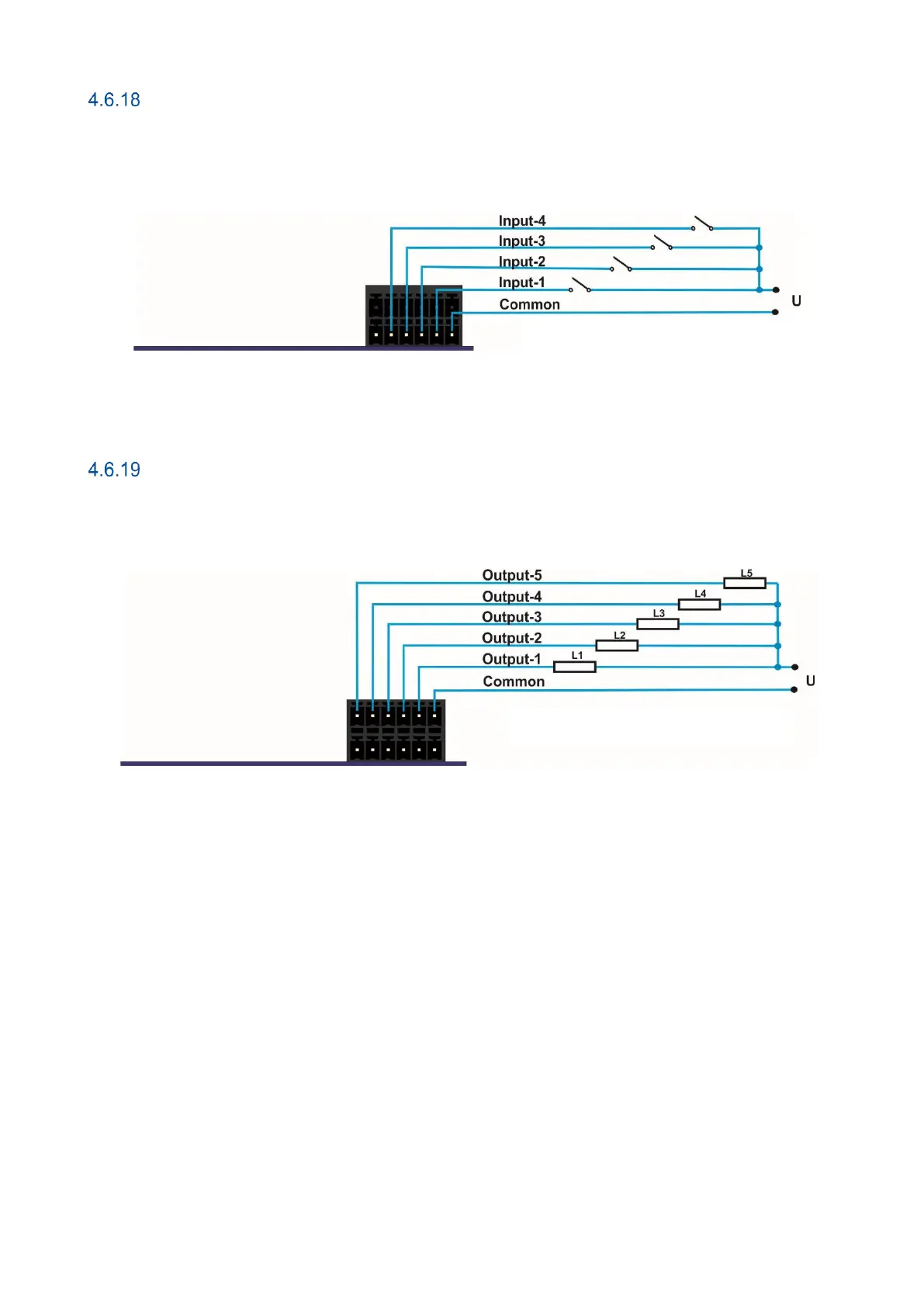

Inputs connection diagram is shown in Figure 4.29.
Figure 4.29 - Connection diagram of digital inputs
Digital Outputs:
FT-111 instrument digital outputs can be programmable as a free setpoint, as a control output or as a remote output at basic
weighing.
Outputs connection diagram is shown in Figure 4.30.
Figure 4.30 - Outputs connection diagram
Inputs are 12 .. 28 VDC, 10 mA
Outputs are 250 VAC or 30 VDC, 1A.
