10.10 CC-Link
After setting related parameters you can communicate with FT-111 via CC-Link network.
Supported CC-Link version is v1.10 and baud rates are 156 kbps (default), 625 kbps, 2,5 Mbps, 5 Mbps and 10 Mbps.
There are 2 LED’s near the CC-Link connector which are;
(A) Run LED
State
Indication
Off
No network participation, timeout status (no power)
Green
Participating, normal operation
Red
Major fault (FATAL error)
(B) Error LED
State
Indication
Off
No error detected (no power)
Red
Major fault (Exception or FATAL event)
Red, flickering
CRC error (temporary flickering)
Red, flashing
Station Number or Baud rate has changed since startup (flashing)
In the case of red LED warning, check cabling, configuration and station number. Power off the instrument and
reenergize the instrument 30 seconds later.
Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer. Refer to parameter
[ 191 ].

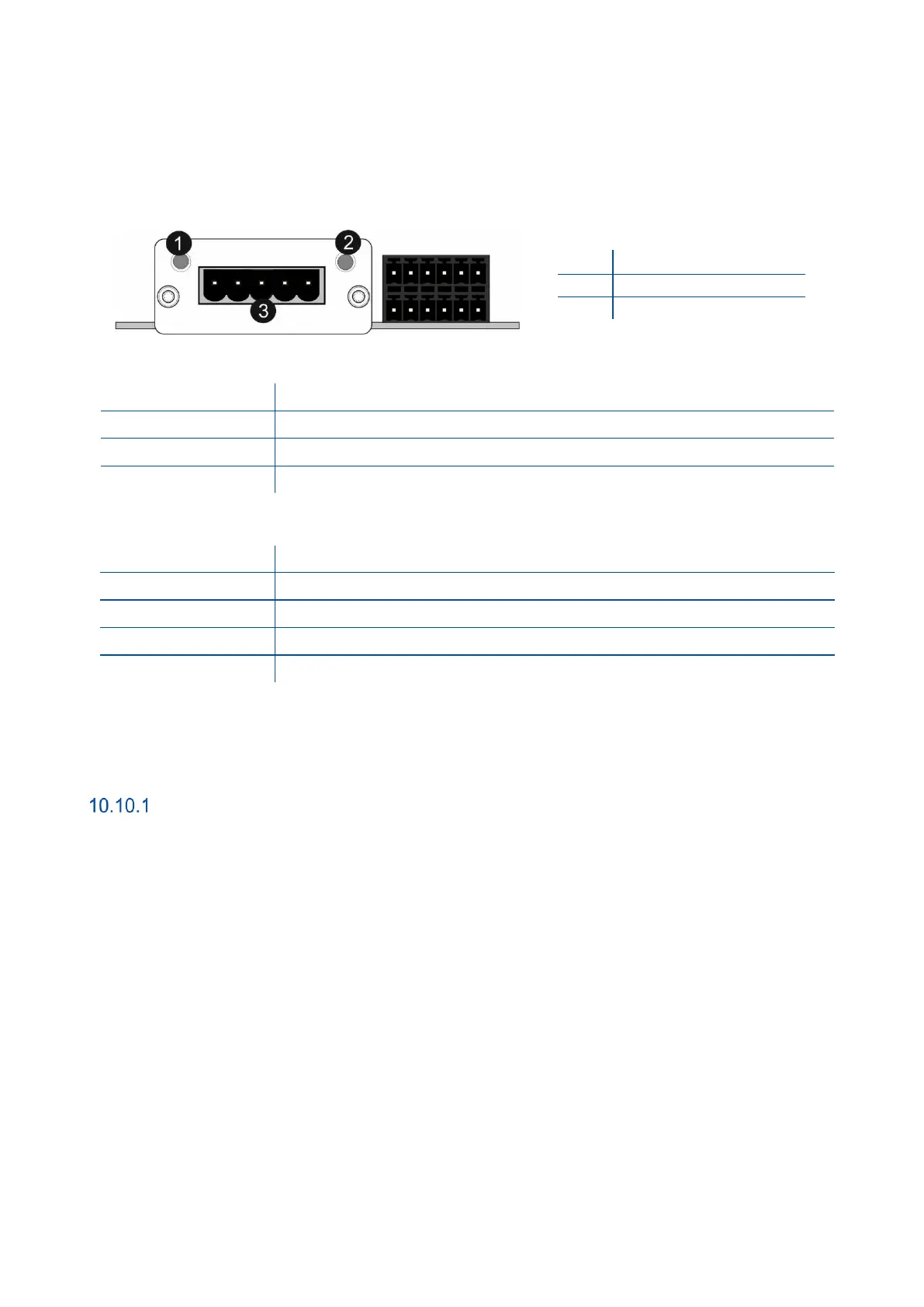

1
(A) RUN LED
2
(B) ERR LED
3
CC-Link interface
