FT-111(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 21 of 146

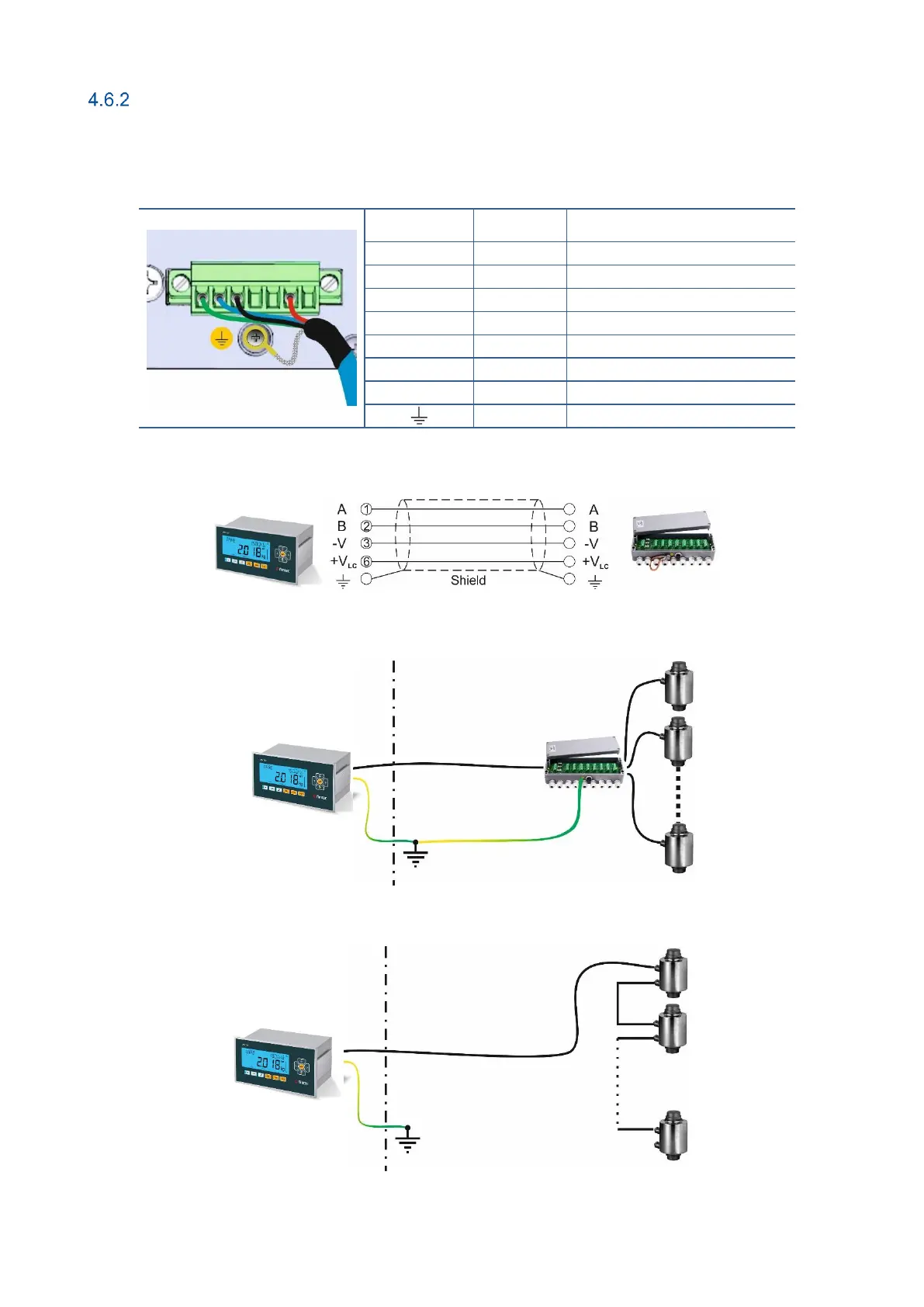

Digital Load Cell Connection (Only FT-111 D)
The digital load cell wiring should be made carefully before energizing to avoid FT-111 D and load cells from
damages. The instrument cable between the instrument and junction box must be shielded and convenient for
high speed RS485 interfacing. The wire diameter of the instrument cable should be selected for maximum 0.5
volt drop between the instrument and junction box.
Table 4-2 – Pin configuration of the digital load cell terminal of FT-111 D.
Figure 4.4 – The FT-111 D connection with junction box
Figure 4.5 – Installation with junction box
Figure 4.6 – Daisy-chain installation
