GSD Configuration
Profibus data consist of 2 x Input-2 words and 2 x Output-2 words.
The GSD file is available in on internet www.flintec.com..

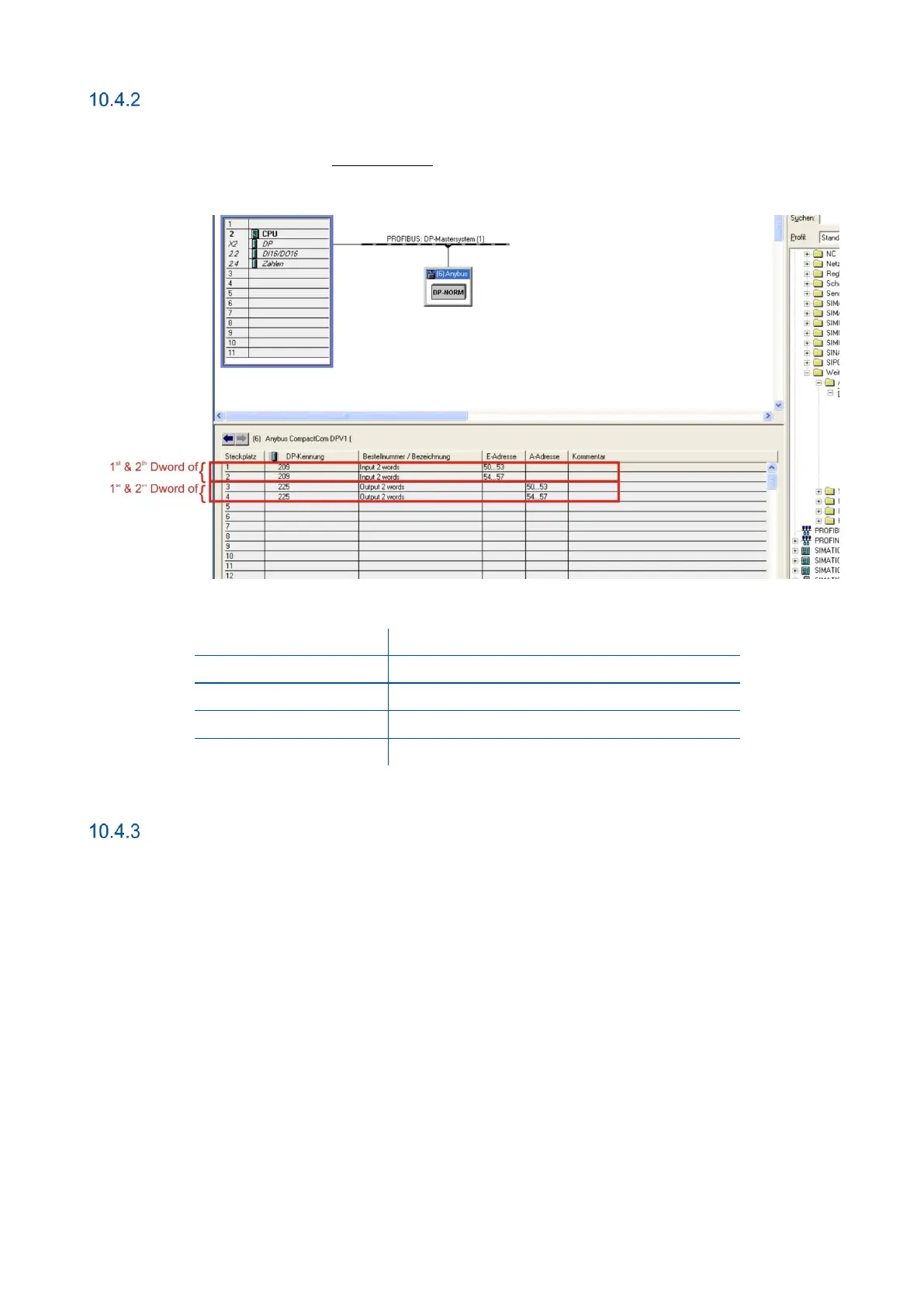

GSD configuration for PLC programmers is shown in Figure 10.1.
Figure 10.1 - GSD Configuration
GSD Configuration
Description
Input 2 words
1
st
Dword (FT-111 Output to PLC Input)
Input 2 words
2
nd
Dword (FT-111 Output to PLC Input)
Output 2 words
1
st
Dword (PLC Output to FT-111 Input)
Output 2 words
2
nd
Dword (PLC Output to FT-111 Input)
Profibus DP Data Structure
For the Data Structure for Profibus see Appendix 1, page 123
