FT-111(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 82 of 146
SPC2 Control mode-2

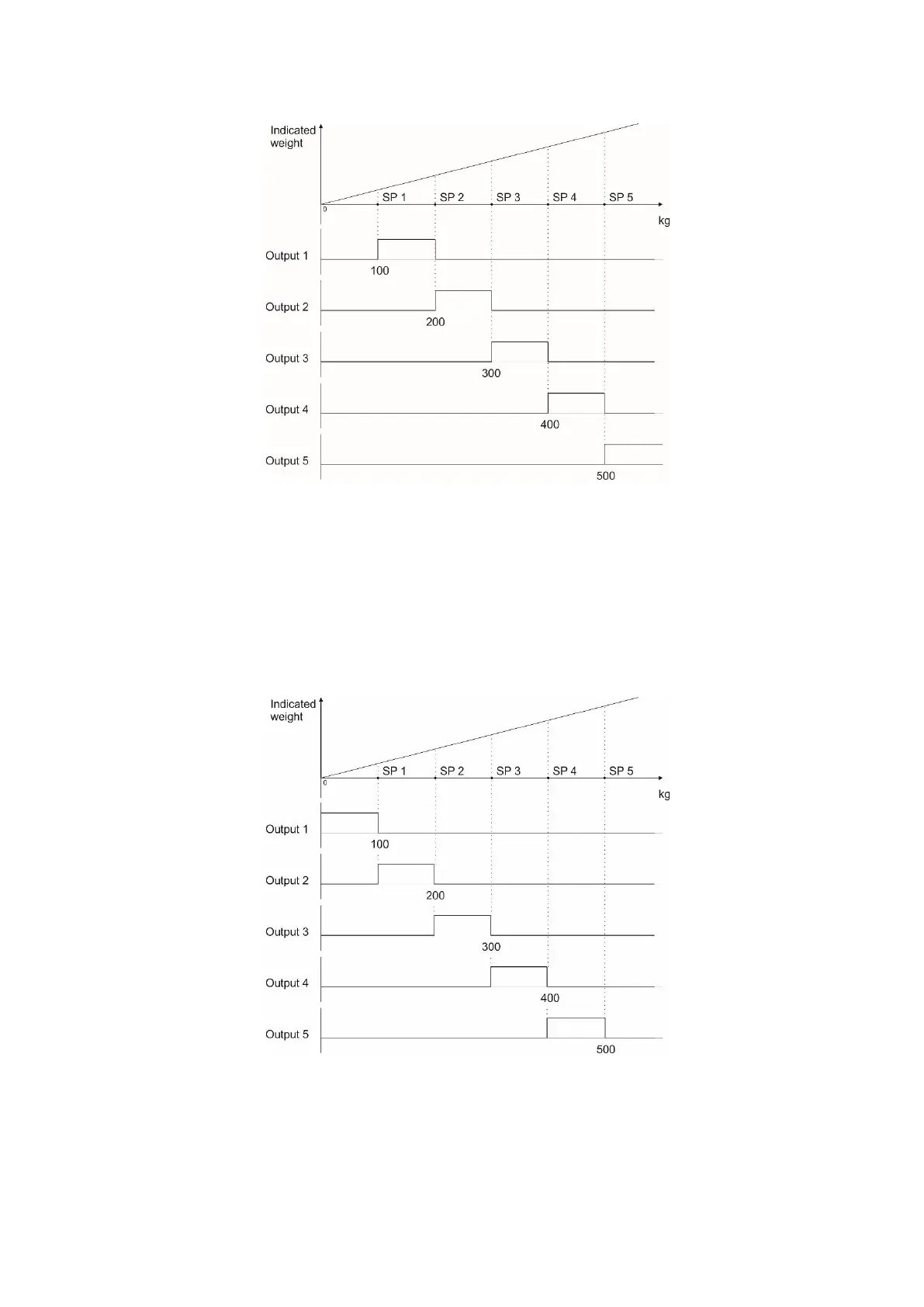

The digital outputs are activated as seen below, if setpoints are set up to Control mode-2 and their values
are entered consequently from setpoint 1 to the setpoint N how much needed.
Digital outputs which are not used at this mode can be programmed freely to any other function. For
example if SP5 is not needed to control, it can be programmed to the zero range to produce empty signal.
