Fluke 43B Service Manual

Performance Verification
4.5 Input 1 and Input 2 Tests in the SCOPE MODE.
4
4-23
ST8129.WMF

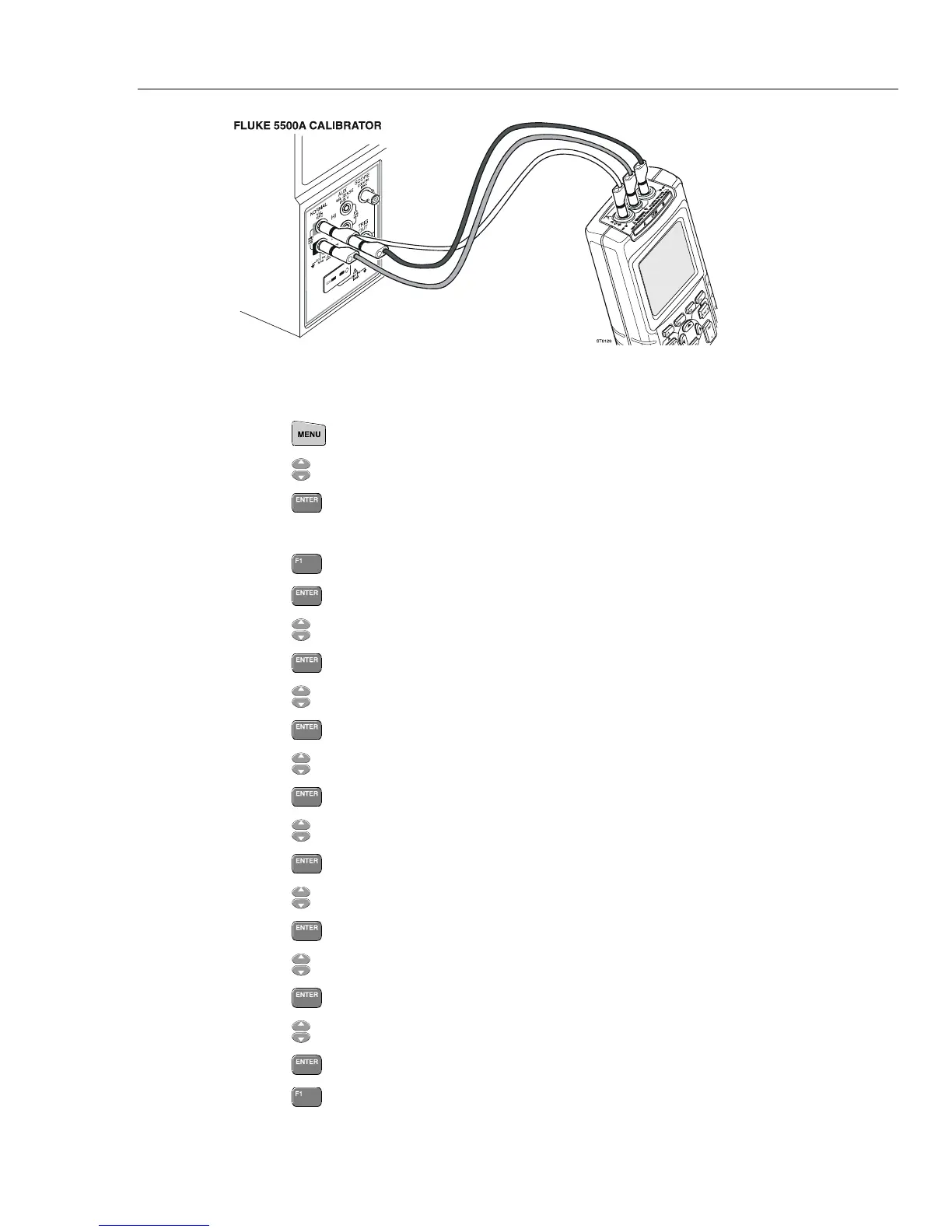

Figure 4-6. Test Tool Input 1-B to 5500A Normal Output for >300V
2. Select the AUTO test tool setup:
• Press
to select the MENU.
• Press
till SCOPE is highlighted.
• Press
to select SCOPE mode
3. Select DC coupling & reading for Input 1 and 2.
• Press
to select menu SCOPE SETUP.
• Press
to select Input 1 READING.
• Press
to highlight DC.
• Press
to confirm;  mark changes to ■.
• Press
to highlight Input 1 Coupling.
• Press
to select the Input 1 Coupling menu.
• Press
to highlight DC Coupling.
• Press
to confirm;  mark changes to ■.
• Press
to select Input 2 READING.
• Press
to select the Input 2 READING
• Press
to highlight DC.
• Press
to confirm;  mark changes to ■.
• Press
to highlight Input 2 Coupling.
• Press
to select the Input 2 COUPLING.
• Press
to highlight DC Coupling.
• Press
to confirm;  mark changes to ■.
• Press
to return to SCOPE.
4. Select the appropriate sensitivity for the test tool:

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
