Fluke 5730A User Manual

Front-Panel Operation
Connect the Calibrator to a UUT 4
4-13
5730A
NOTE
For wideband meters with higher than 50 Ω input impedence, use the 50 Ω
feedthrough terminator at the meter connection end. For all wideband
applications, take care to achieve a good 50 Ω impedence match (use cable
and connectors with a characteristic input impedence of 50 Ω).

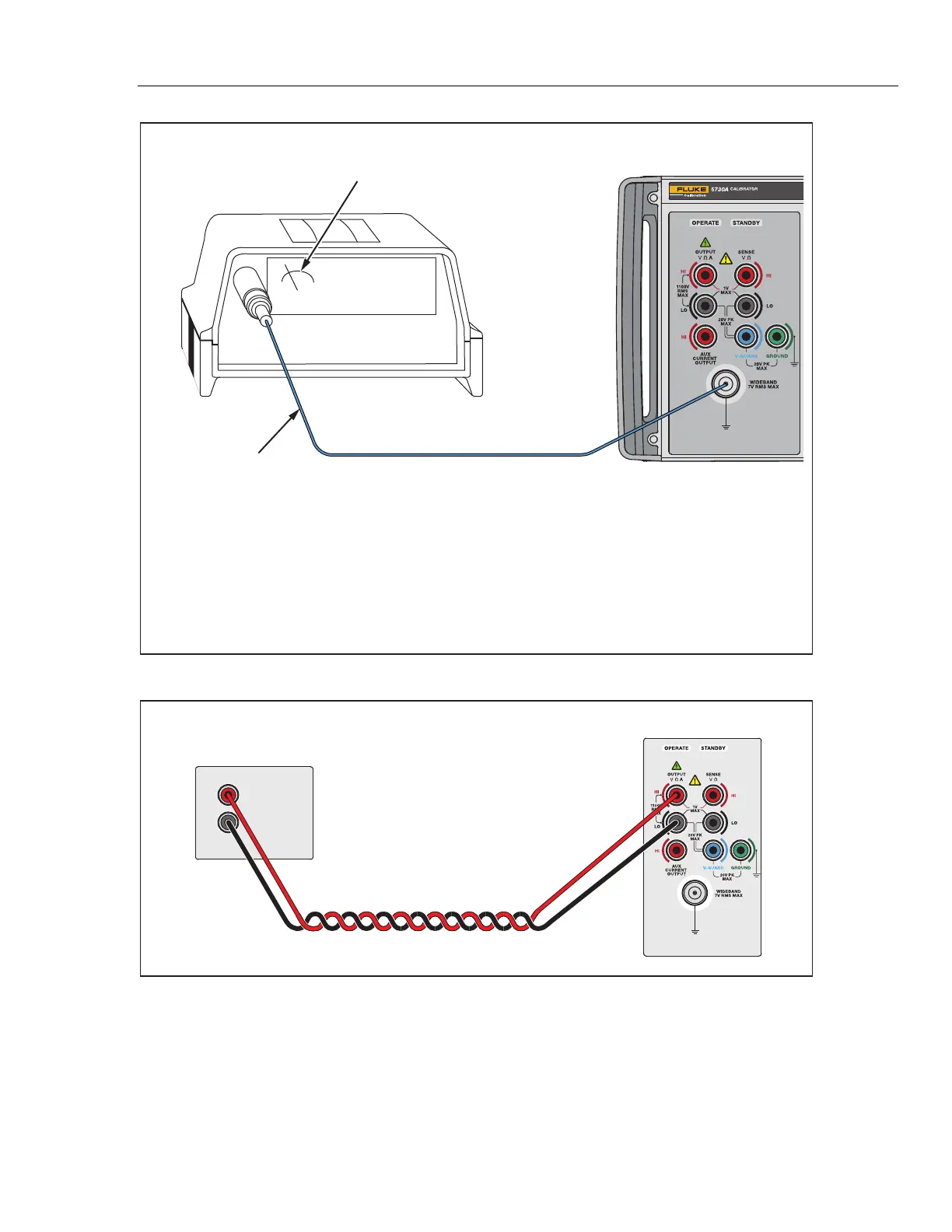

50 Ω Feedthrough Terminator
supplied with the 5730A/03 option
Cable supplied with
the 5730A/03
or 5730/05 option
hhp016.eps
Figure 4-5. UUT Wideband AC Voltage Output (5730A/03 Option)
UUT
HI
LO
5725A
hhp017.eps
Figure 4-6. UUT Connections: 5725A Amplified Current Output

Fluke 5730A Specifications

General

Type	Multifunction Calibrator
Resistance Range	0 to 1 GΩ
AC Voltage Frequency	10 Hz to 1 MHz
Display	Color LCD
Interfaces	RS-232, Ethernet
Weight	18 kg
DC Voltage Range	0 to ±1100 V
Dimensions	172 mm H x 432 mm W x 457 mm D (6.8 in H x 17 in W x 18 in D)
