8. Enter a frequency with the numeric keypad (followed by  if necessary). The
display now shows the amplitude and frequency of the entry. If an entry error is
made, push  to clear the display, then reenter the value. If the most recent digit
entered is in error, push  to clear that digit. The display below assumes an entry of

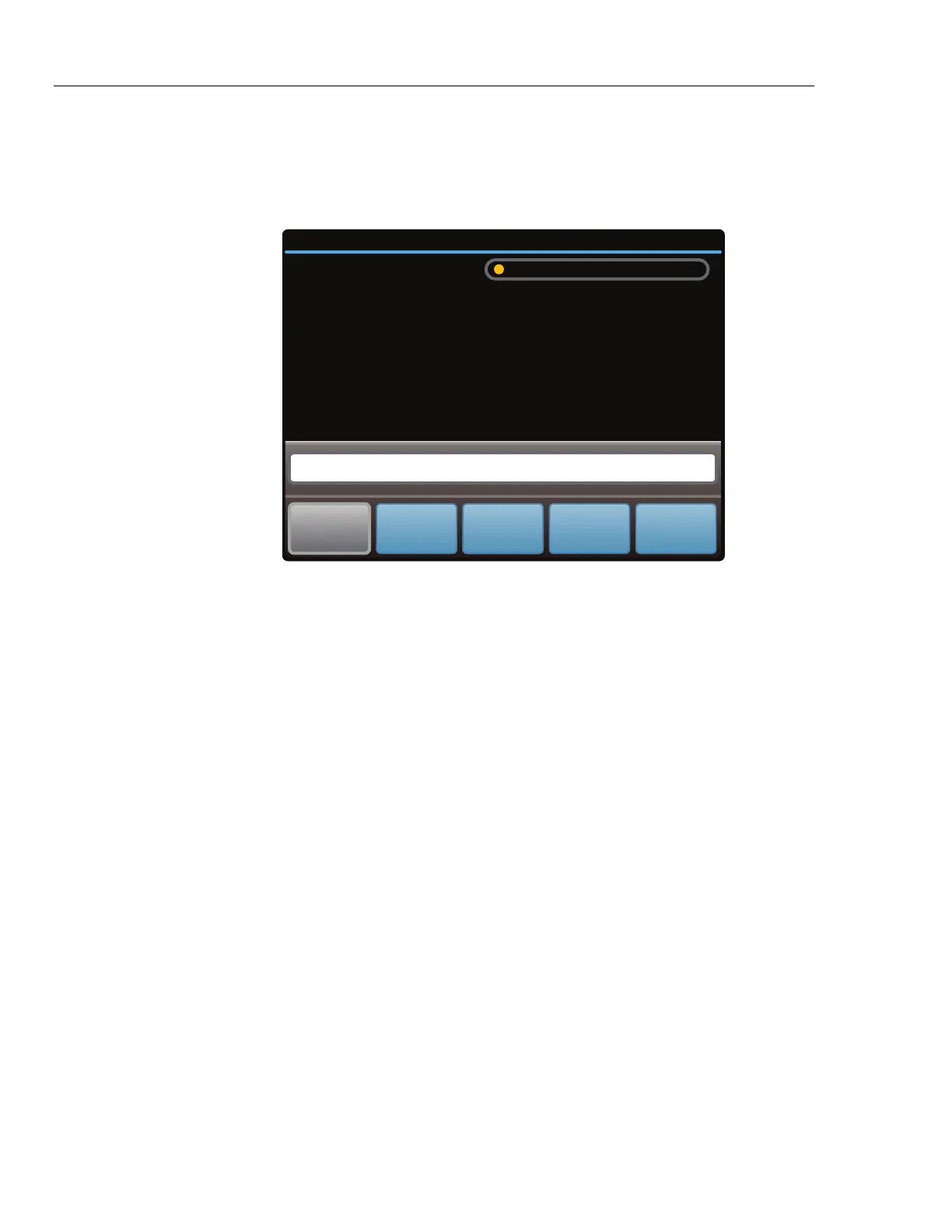

2.5 kHz:
+/- 0.00050mV (1 year) 213 days since calibration
3/14/2013 10:52am
External
Sense
OFF
External
Guard
OFF
Wideband
OFF
Setup
Menu
Operate
mV
0.00000
Auto Range 220 mV
125mA 2.5kHz
External
Sense
OFF
hhp120.eps
9. Push . The Calibrator clears the entry from the entry bar near the bottom and
shows in the larger area above. No current is available at the output terminals until
 is pushed.
10. Push to activate the Calibrator output. The UUT will now respond to the
applied current.
In AC current output, the selections available at the bottom are:
• Current Output
• External Guard
• Boost
• Wideband
• Setup Menu
In addition, the Phase Control and Scale functions are available. The output range is
always automatically chosen and cannot be locked in ac current.
Note
The Calibrator stays in the ac function after a non-zero frequency is
entered. To change back to dc, enter a frequency of 0 Hz or push  and
then .

Fluke 5730A Specifications

General

Type	Multifunction Calibrator
Resistance Range	0 to 1 GΩ
AC Voltage Frequency	10 Hz to 1 MHz
Display	Color LCD
Interfaces	RS-232, Ethernet
Weight	18 kg
DC Voltage Range	0 to ±1100 V
Dimensions	172 mm H x 432 mm W x 457 mm D (6.8 in H x 17 in W x 18 in D)
