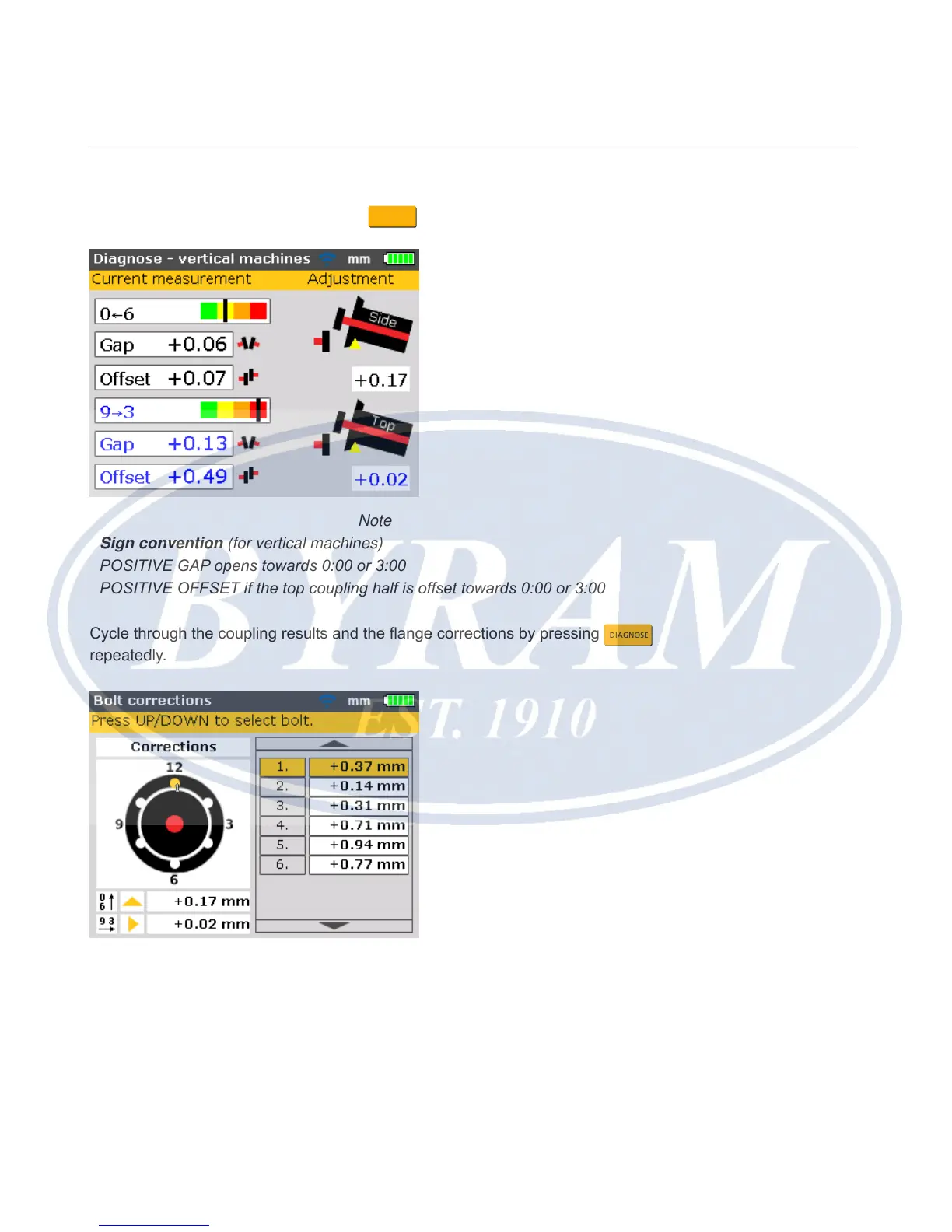

Diagnose
When measurement is complete, press
DIAGNOSE
to view the diagnosis.
Note
Sign convention (for vertical machines)
POSITIVE GAP opens towards 0:00 or 3:00
POSITIVE OFFSET if the top coupling half is offset towards 0:00 or 3:00
Cycle through the coupling results and the ange corrections by pressing
DIAGNOSE
repeatedly.
The shim corrections are numbered to correspond with the bolt positions. The
bolt position corresponding to the currently highlighted calculated shim correction
value appears numbered and highlighted with an orange dot.
Use the navigation keys to cycle through the shim values.
Vertical flanged machines
Diagnose
