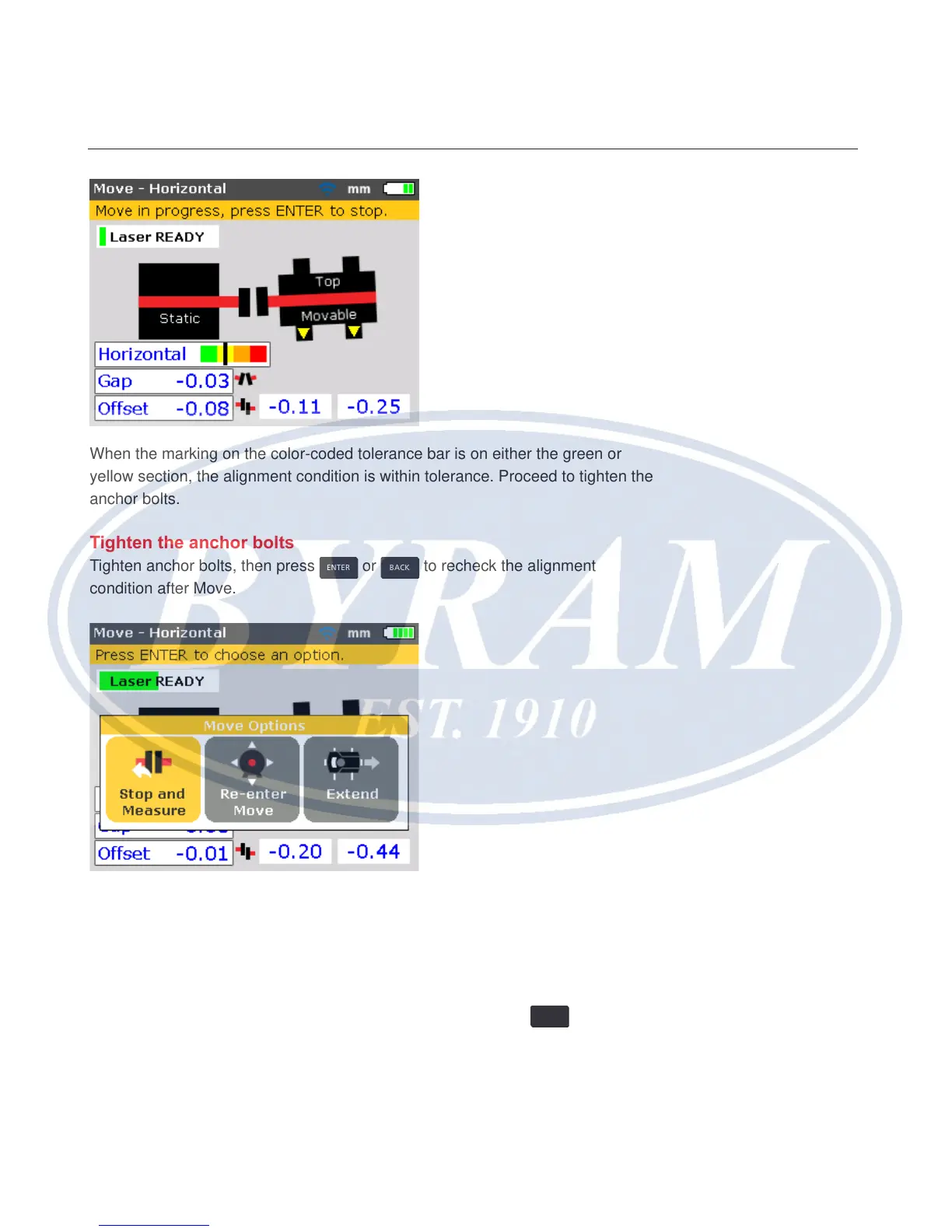

When the marking on the color-coded tolerance bar is on either the green or
yellow section, the alignment condition is within tolerance. Proceed to tighten the
anchor bolts.
Tighten the anchor bolts
Tighten anchor bolts, then press
ENTER
or
BACK
to recheck the alignment
condition after Move.
If machine moves while tightening correct soft foot rst and also check for a
cocked anchor bolt and dished washer, then realign.
Re-measure after Move - machine in tolerance?
Since the machine has been moved, earlier results are no longer valid. With
‘Stop and Measure’ highlighted after Move is completed, press
ENTER
to conrm
selection. On conrmation, the measurement mode is initialized. If necessary,
center laser beam and take another set of measurements. If the diagnosis is
within required tolerance, then the machines are aligned.
Horizontal shaft alignment
Live Move
