If necessary tap ( ) to select applicable rotor
type. Tap in Machine type to select necessary type
of machine. Available options are: 1 plane overhung; 1
plane intermediate
Tap in Correction mode A to select necessary cor-
rection mode. Available options are Free – for planes
where the mass can be added or removed at any angular
position; and Fixed – for machines that masses can be
added or removed at applicable positions (for example,
on the blade of a ventilator).
Tap in Trial/Trim mass to select as default, whether
to add or remove masses.

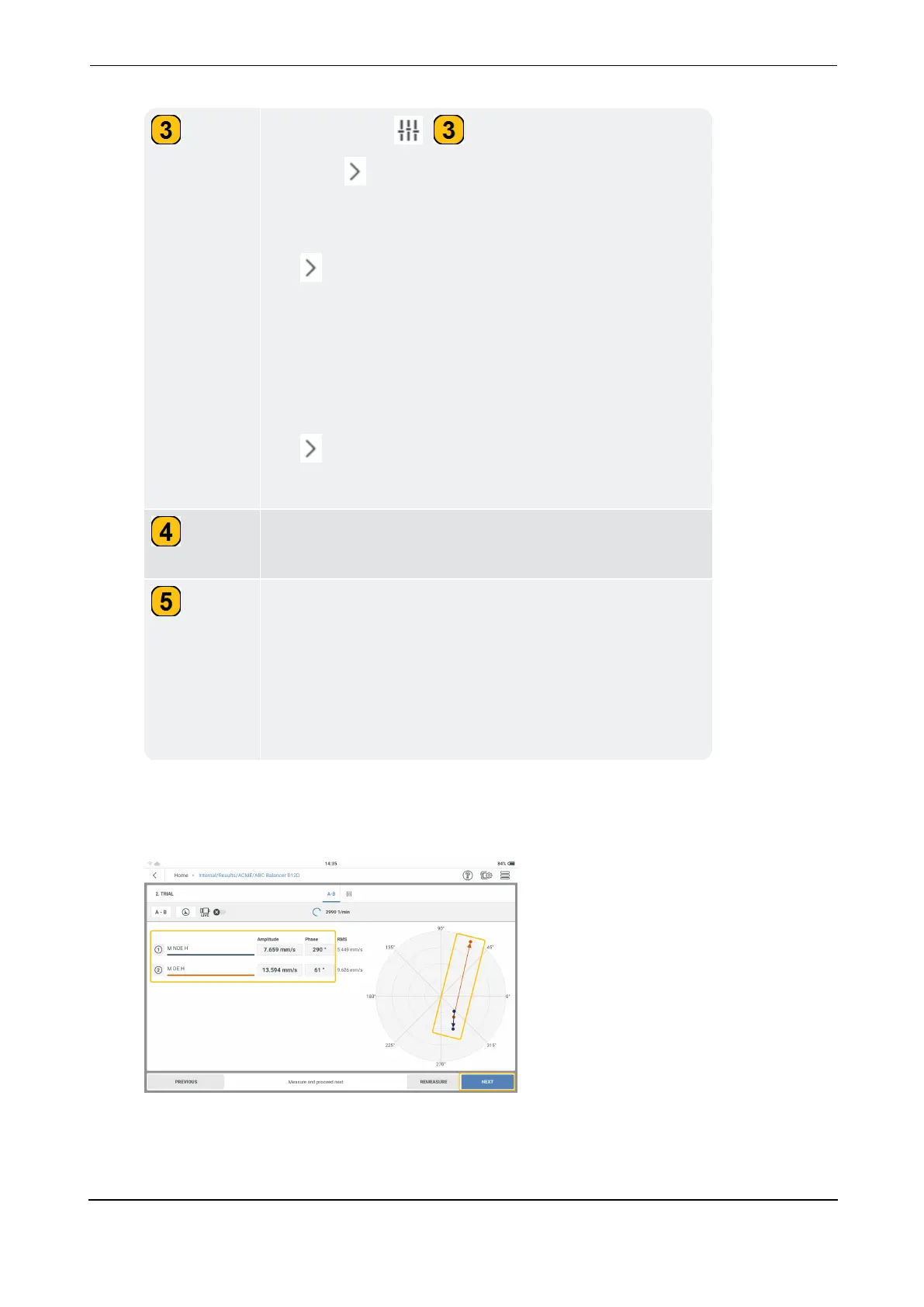

Shows currently selected rotor type – in this case it is 1
plane overhung.
To edit trial mass and angle, tap the edit area. Use the
on-screen keyboard and enter the trial run mass and
angle, then tap SAVE. In this example, the values 1 g
and 0° have been entered. No amplitude and phase
angle values are shown because the trial run has not
started.
l
Tap NEXT, then tap MEASURE in the next screen to do the trial run with the attached trial
mass. When the values are stable, the STOP button is shown.
l
Tap STOP then switch the machine off.
The screen shows the trial run results in digits and as a vector in the polar diagram. The
