Note:As a triaxial sensor measures the 3 axes X,Y and Z at the same time, three meas-
ure channels are necessary. As a result, whenever a triaxial sensor is selected in device
settings, three channels are occupied automatically.
Thus, the triaxial sensor can be connected to only channels 1 or 4.
l
Connect the sensor cable to the triaxial sensor then mount the sensor on the machine to
be measured. Refer to the sensor orientation window described before.
Make sure that the orientation of the sensor on the machine is related to direction selec-
ted in the configuration screen.
More information on sensor orientation is found in the measurement screen.

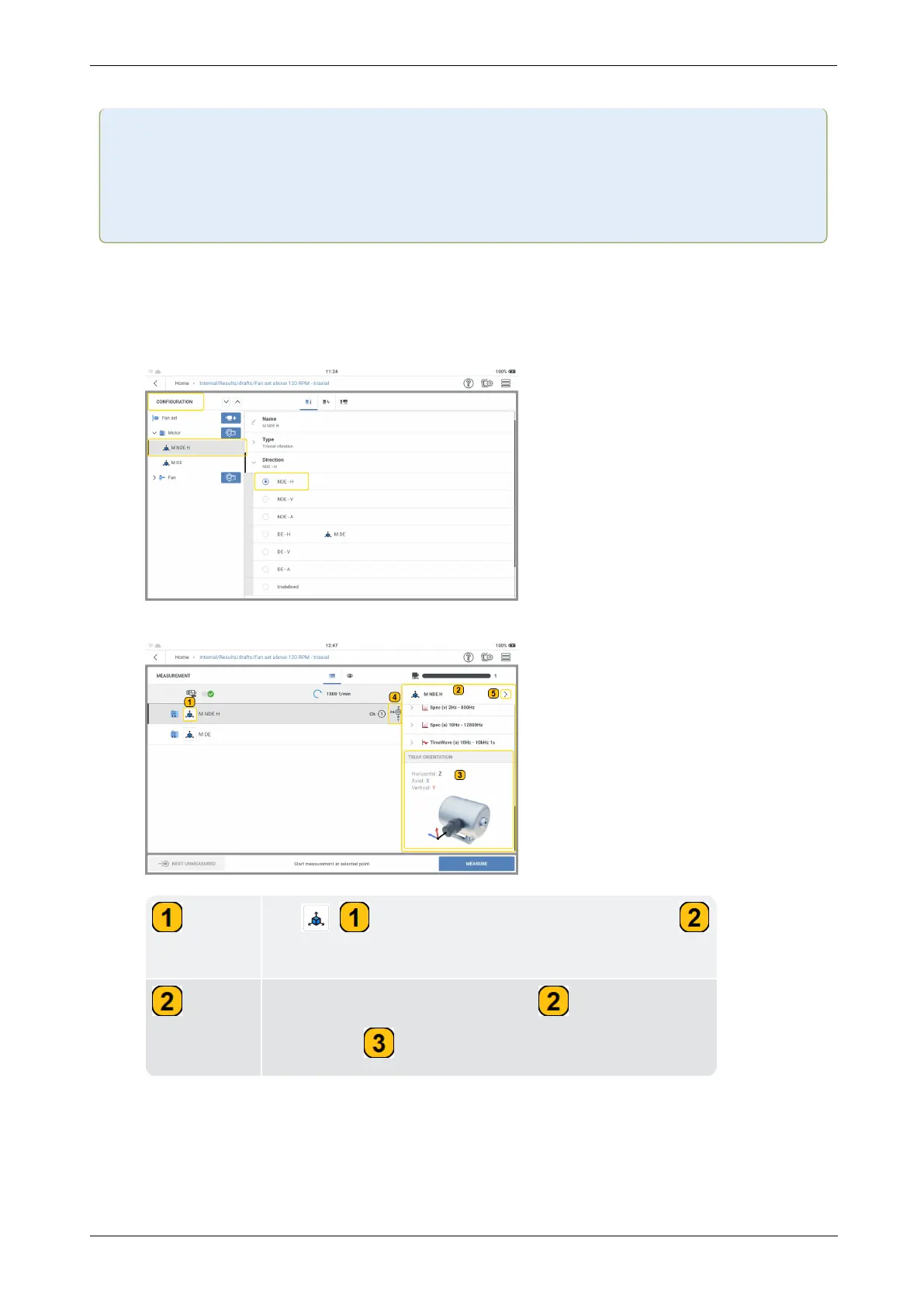

Tap ( ). The triaxial sensor information panel (
) is shown.
Scroll down the information panel ( ) until the triaxial
orientation ( ) is shown.
