Hardware installation Mounting the FortiMail unit
FortiMail™ Secure Messaging Platform Version 4.0 Patch 1 Install Guide
Revision 2 23
http://docs.fortinet.com/ • Feedback

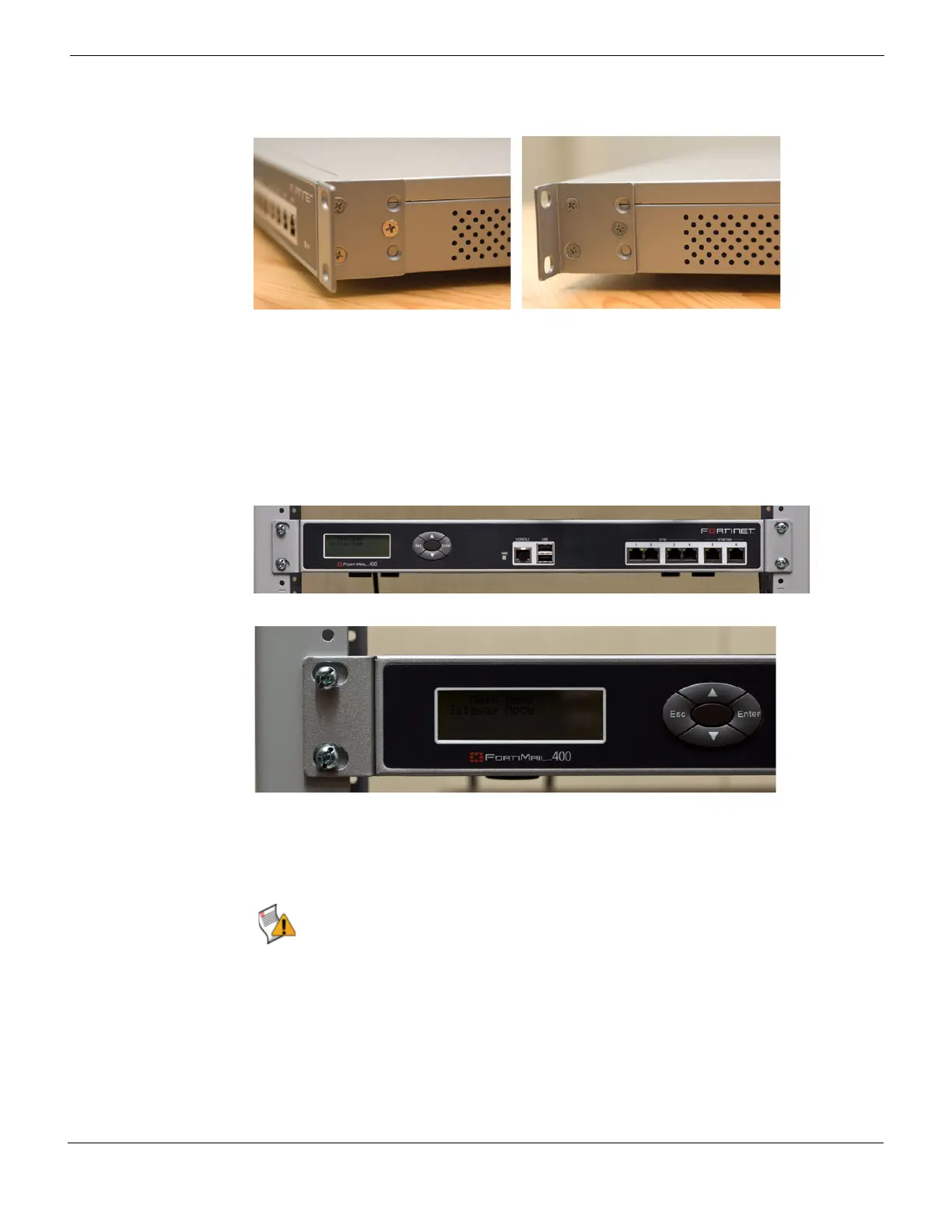

Figure 2: Installed mounting brackets
2 Position the FortiMail unit in the rack to allow for sufficient air flow.
3 Line up the mounting bracket holes to the holes on the rack, ensuring the FortiMail unit
is level.
4 Finger tighten the screws to attach the FortiMail unit to the rack.
5 Once you verify the spacing of the FortiMail unit and that it is level, tighten the screws
with a screwdriver.
Figure 3: Mounting in a rack
FortiMail-2000A and FortiMail-4000A
To mount the FortiMail unit on a 19-inch rack or cabinet, use the slide rails included with
the product.
Mounting requires three steps:
• disassembling the slide rail from the slide housing
• attaching the slide rail to the sides of the FortiMail unit
• mounting the FortiMail unit to the rack or cabinet
Caution: To avoid personal injury or damage to the FortiMail unit, it is highly recommended
a minimum of two people perform this procedure.
