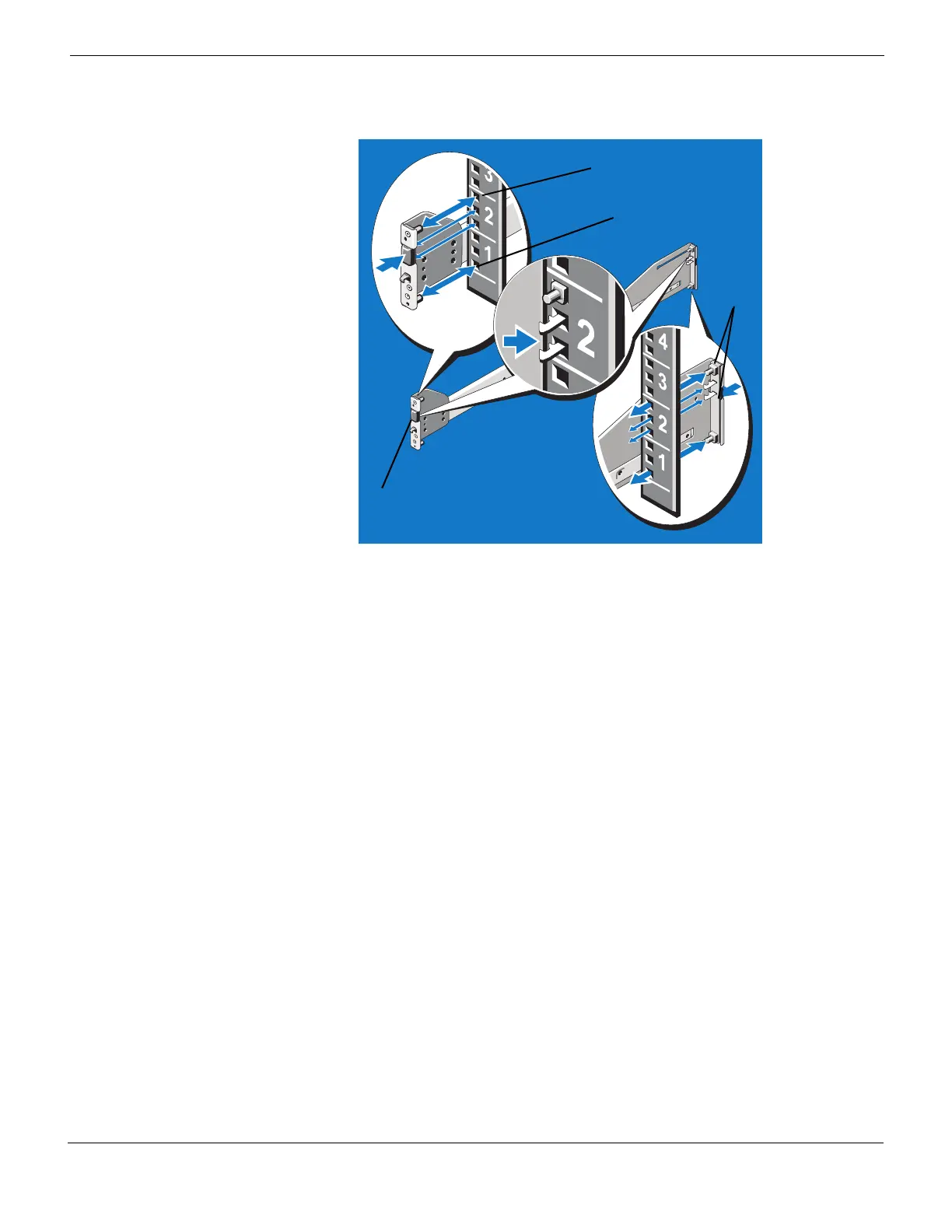

Figure 2: Installing and removing the rails (square-hole racks)
• Align each end piece to seat the pegs in the bottom hole of the first U and the top
hole of the second U (4).
• Engage the back end of the rail until it fully seats on the vertical rack flange and the
second “tooth” on the latch locks in place. Repeat these steps to position and seat
the front end piece on the vertical flange (5).
• To remove the rails, pull on the latch release button on the end piece midpoint and
unseat each rail (6).
3 In round-hole racks, do the following:
• Position the left and right rail end pieces of the rail module labeled FRONT facing
inward and orient each end piece to seat in the round holes on the front side of the
vertical rack flanges (7).
