Framery 2Q Huddle

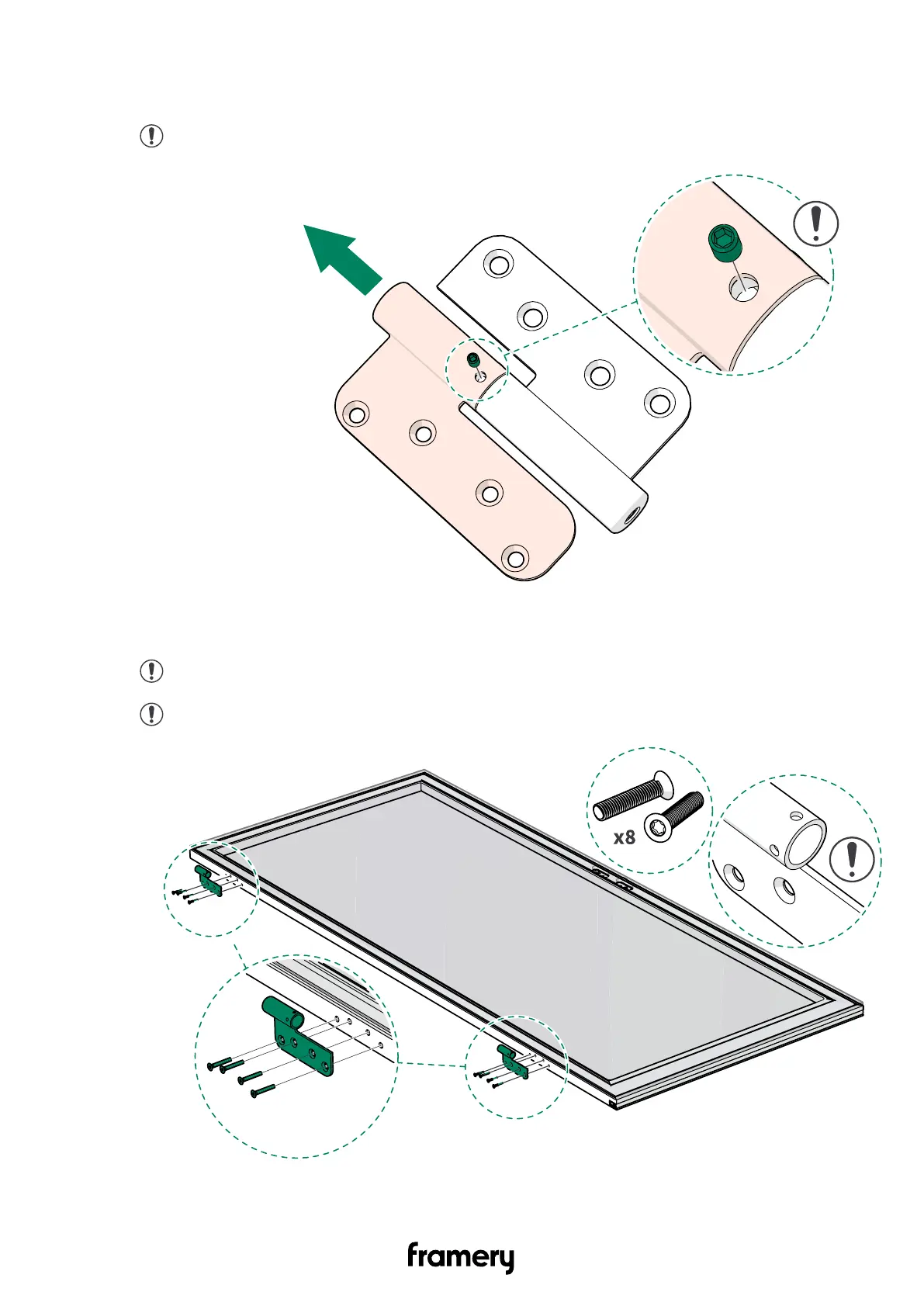

2. Remove M5x6 screw from the upper part of both hinges. Separate the hinges into two
parts each.
Note: Set the screw aside and make sure that you do not loose it.
3. Attach the upper halves of the hinges to the door with black M6x30 Taptite screws (4
pcs each). Use a hand tool to tighten the screws.
Note: The upper halves of the hinges have two small holes in the side.
Note: Make sure that the hinges do not overlap the seal.
Installation instructions
