15.3 Install the wall cover panels

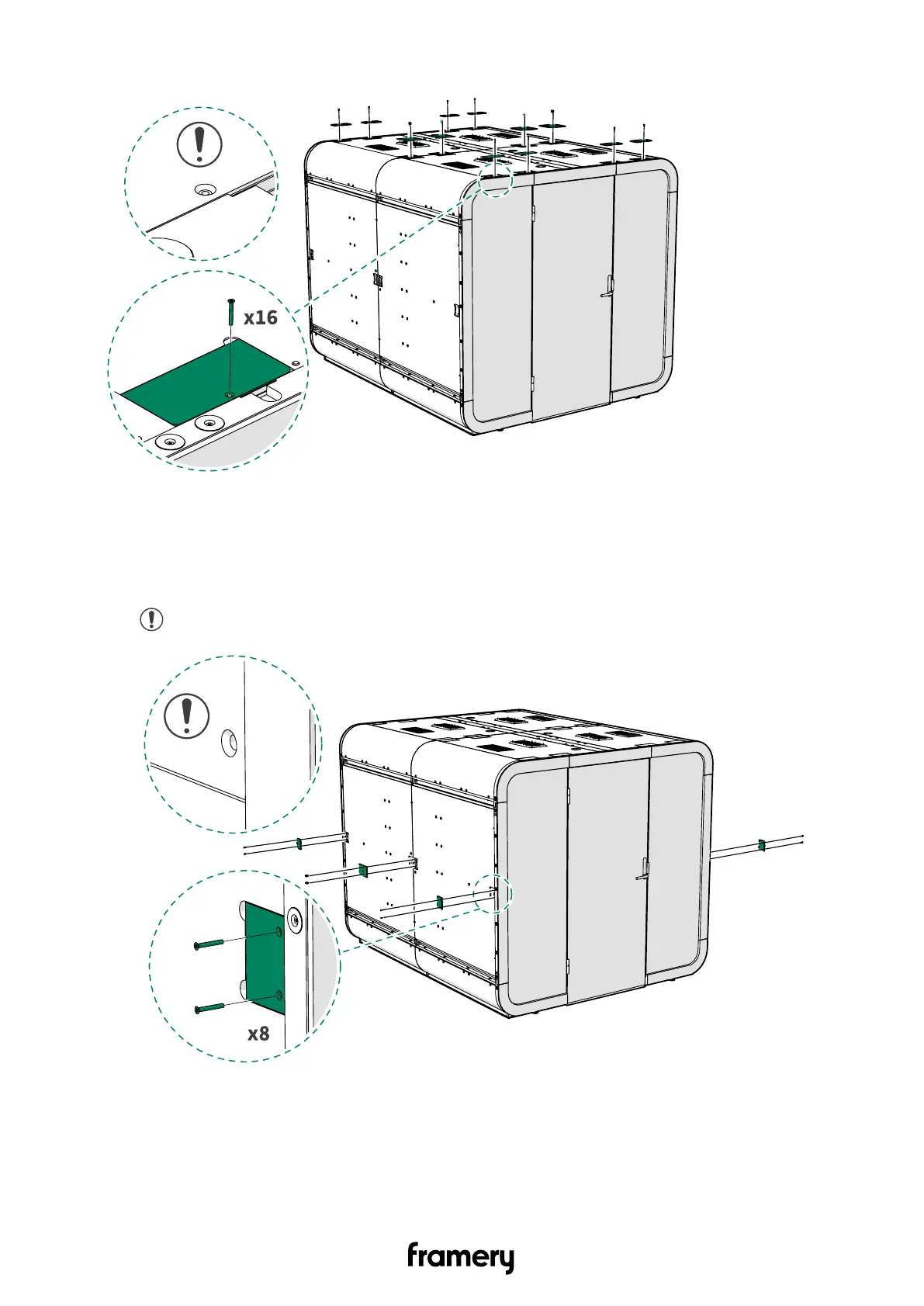

1. Reinstall the small cover panels (8 pcs) to the walls with 4x30 screws (16 pcs).

Note: Place the countersunk holes upwards. Use the existing screw holes.
