Framery 2Q Huddle
5.2.3 Install the upper frame (back)

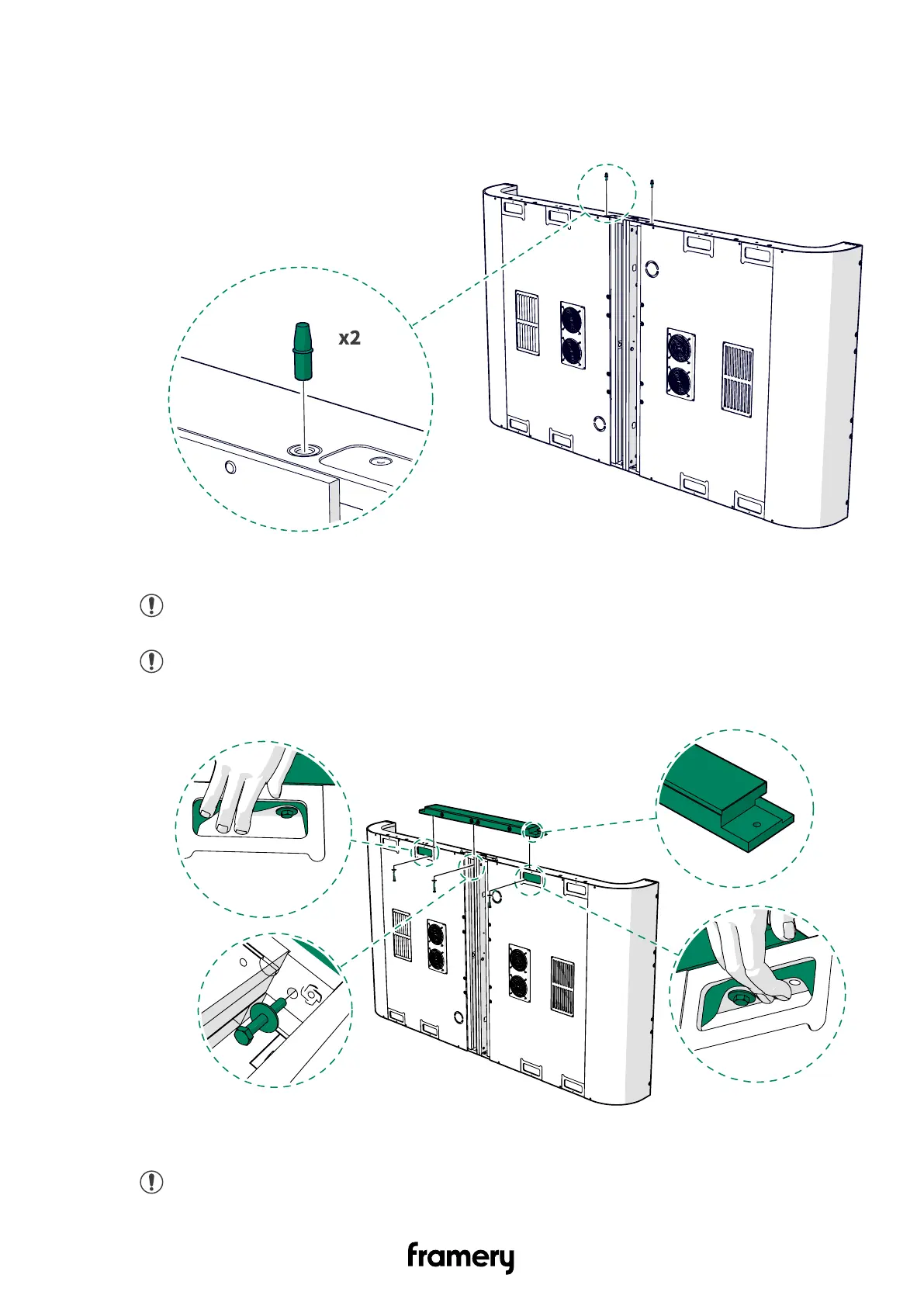

1. Install guide pins (2 pcs) into the installation holes.
2. Install the upper frame with M8x55 bolts (3 pcs) and M8 washers (3 pcs).
Note: Press the acoustic panel aside to reach the bolt holes. Make sure that
you return the acoustic panel to its original position.
Note: Pull the roof modules straight to fit the upper frame into place. Bend the
modules further to install the screws, if needed.
3. Set aside the roof module pair.
Note: Make sure that the combined roof modules can not fall down.
