Framery 2Q Huddle

17 Finalize the installation

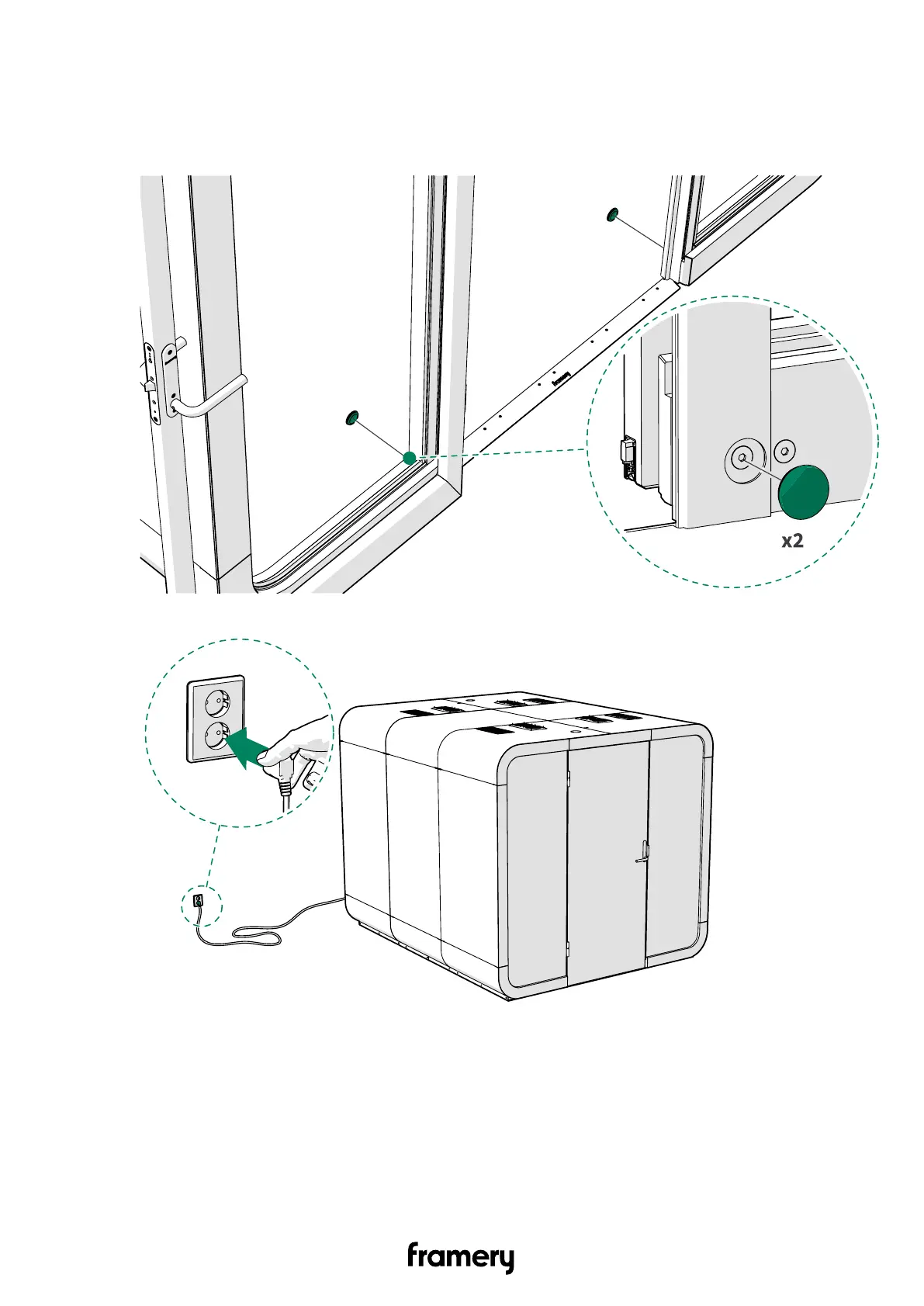

1. Install the profile hole covers on the inside of the door frame near the floor.

2. Connect the main power cord to a power outlet.

182

Installation instructions
