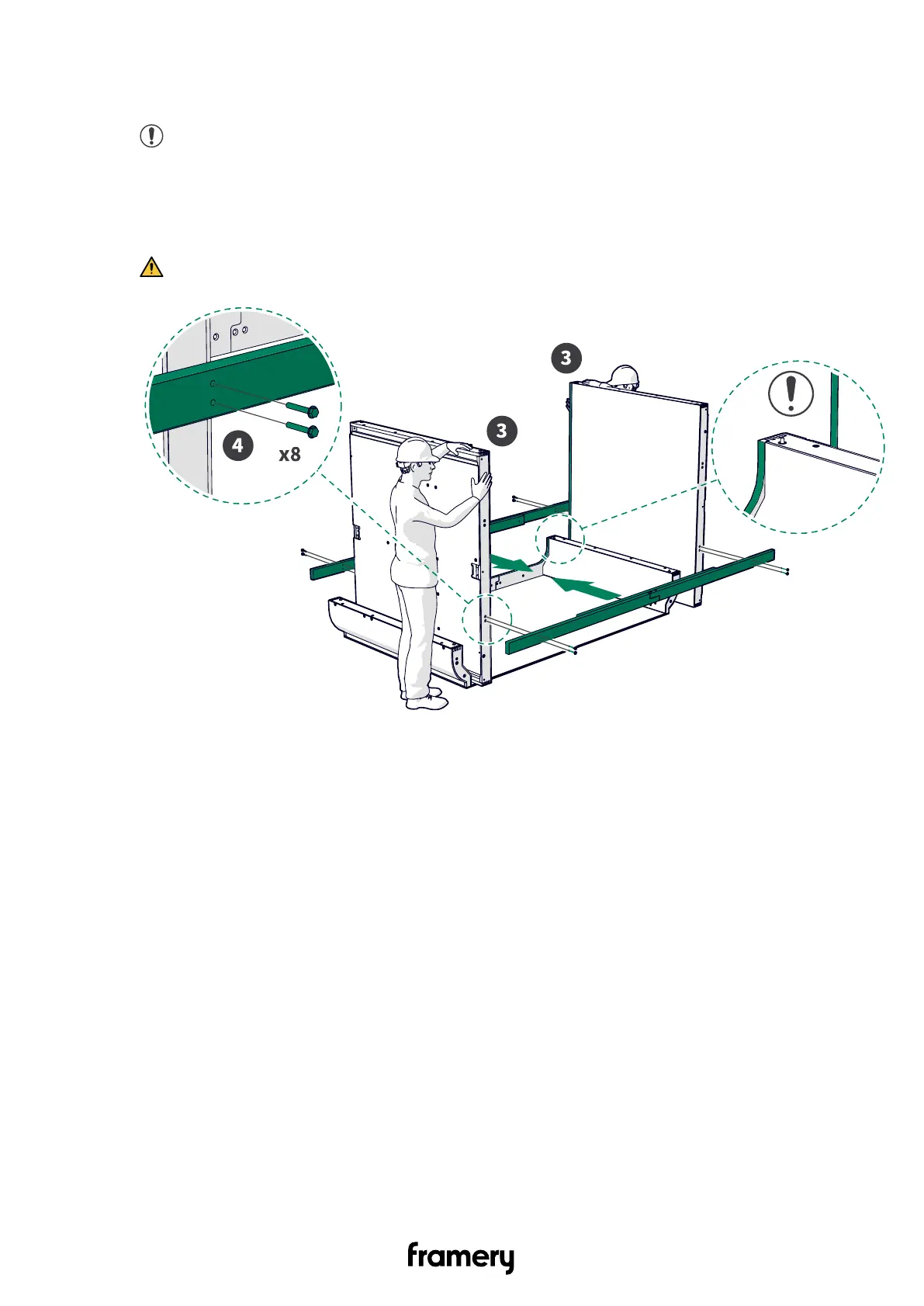

3. Stand one of the wall modules on the floor board and the other on the outside of the
floor.
Note: Make sure that the black ABS strips are on the outer side of the wall
modules.
4. Install one support beam on each side of the wall modules with flanged M8x50 bolts (4
pcs).
The support beams extend past the sides of the wall modules.
Warning: Support the walls continuously until the support beams are installed.
5.3.2 Assemble the roof support beams (back)
Install the angle irons to the roof support beams with M8x90 bolts (2 pcs), M8 washers (2
pcs) and flanged M8 nuts (2 pcs).
Place the angle irons on top of the blue foam covering.
