Framery 2Q Huddle

4 Prepare the carpet for installation

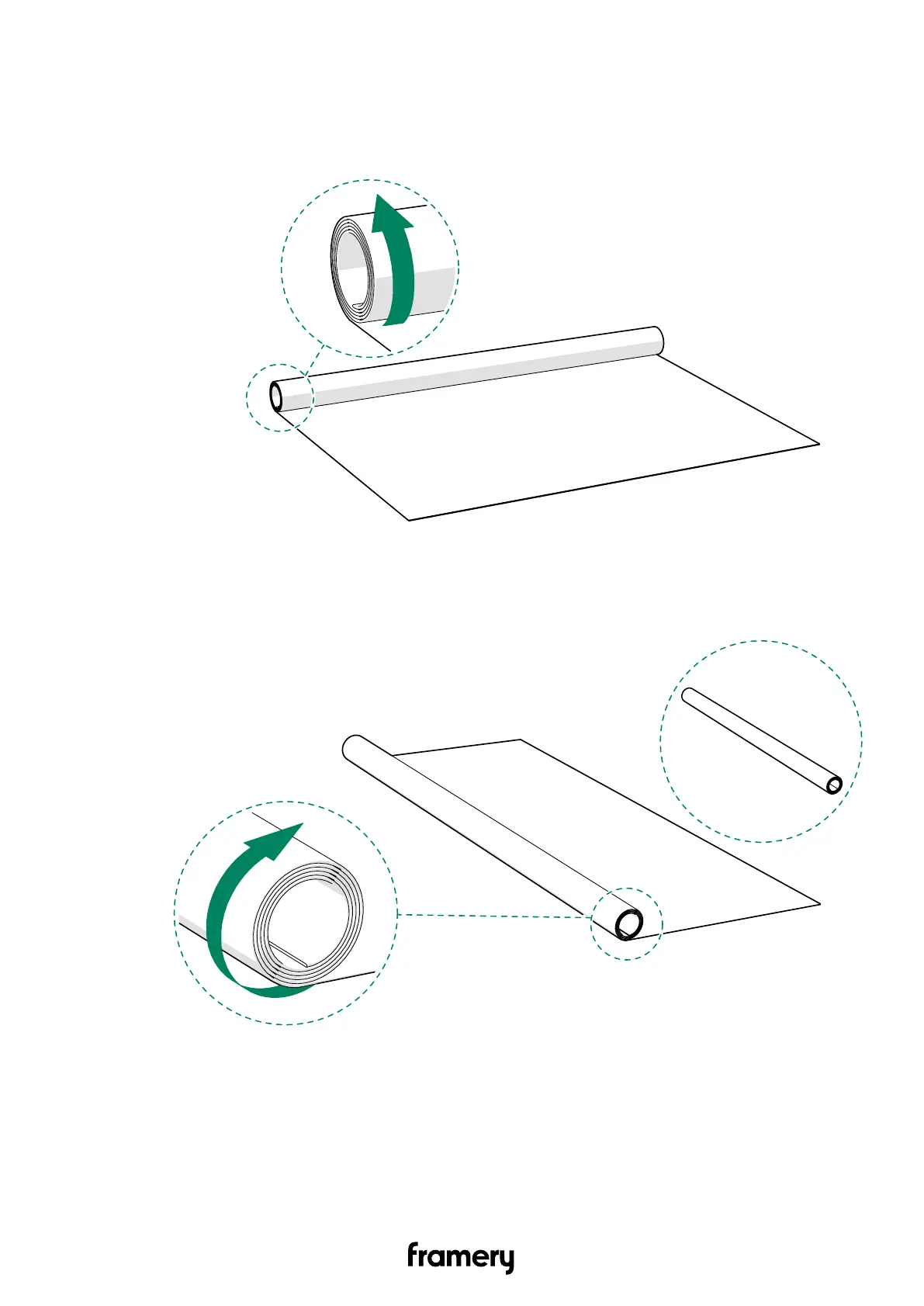

1. Unroll the carpet.

2. Roll the carpet the other side up from the long side.

Installation instructions
