Framery 2Q Huddle

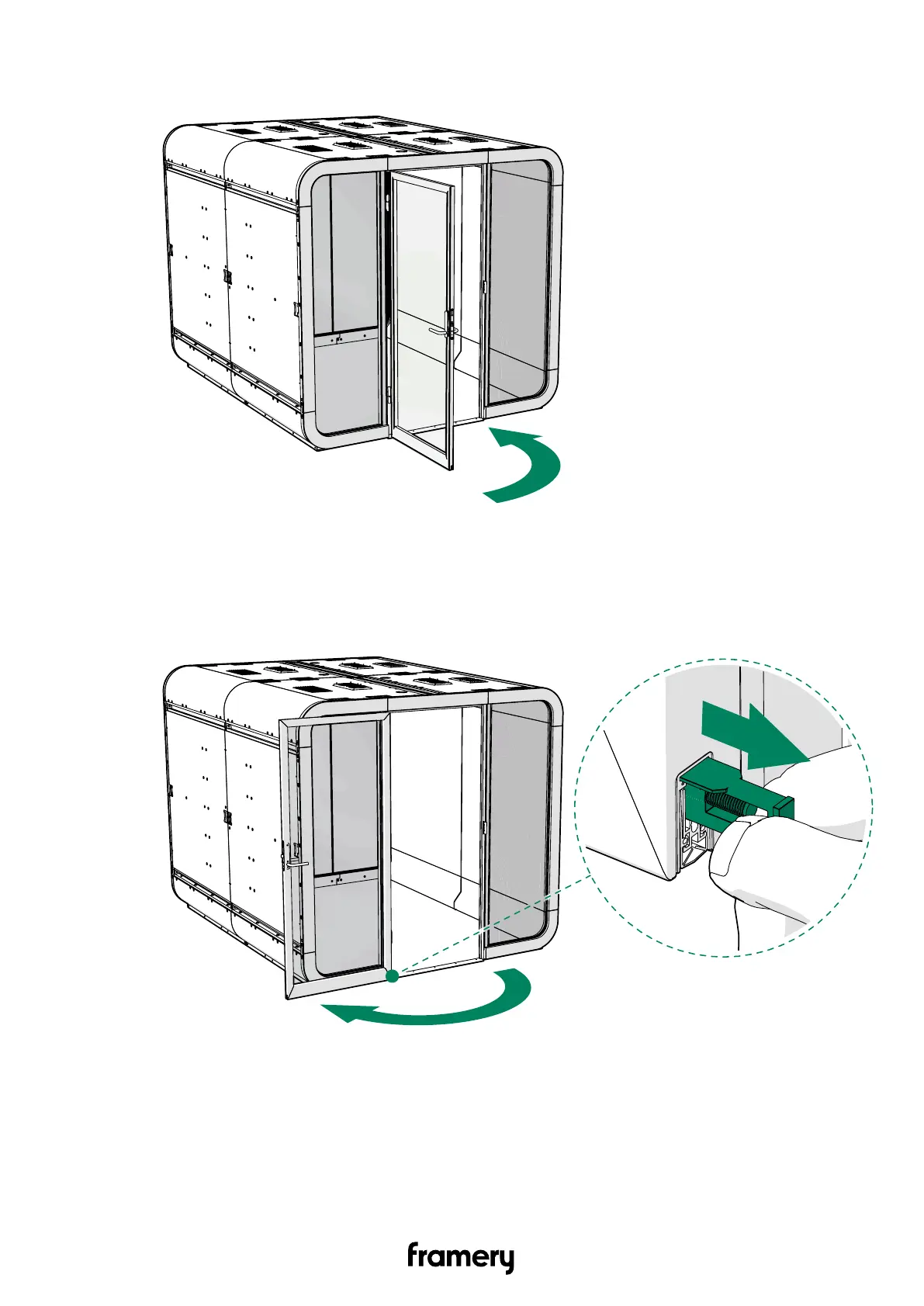

5. Make sure that the door closes correctly and smoothly.

13.8 Adjust the automatic door seal

1. Pull out the adjustment stick from the lower inside frame of the door.

Installation instructions
