Framery 2Q Huddle

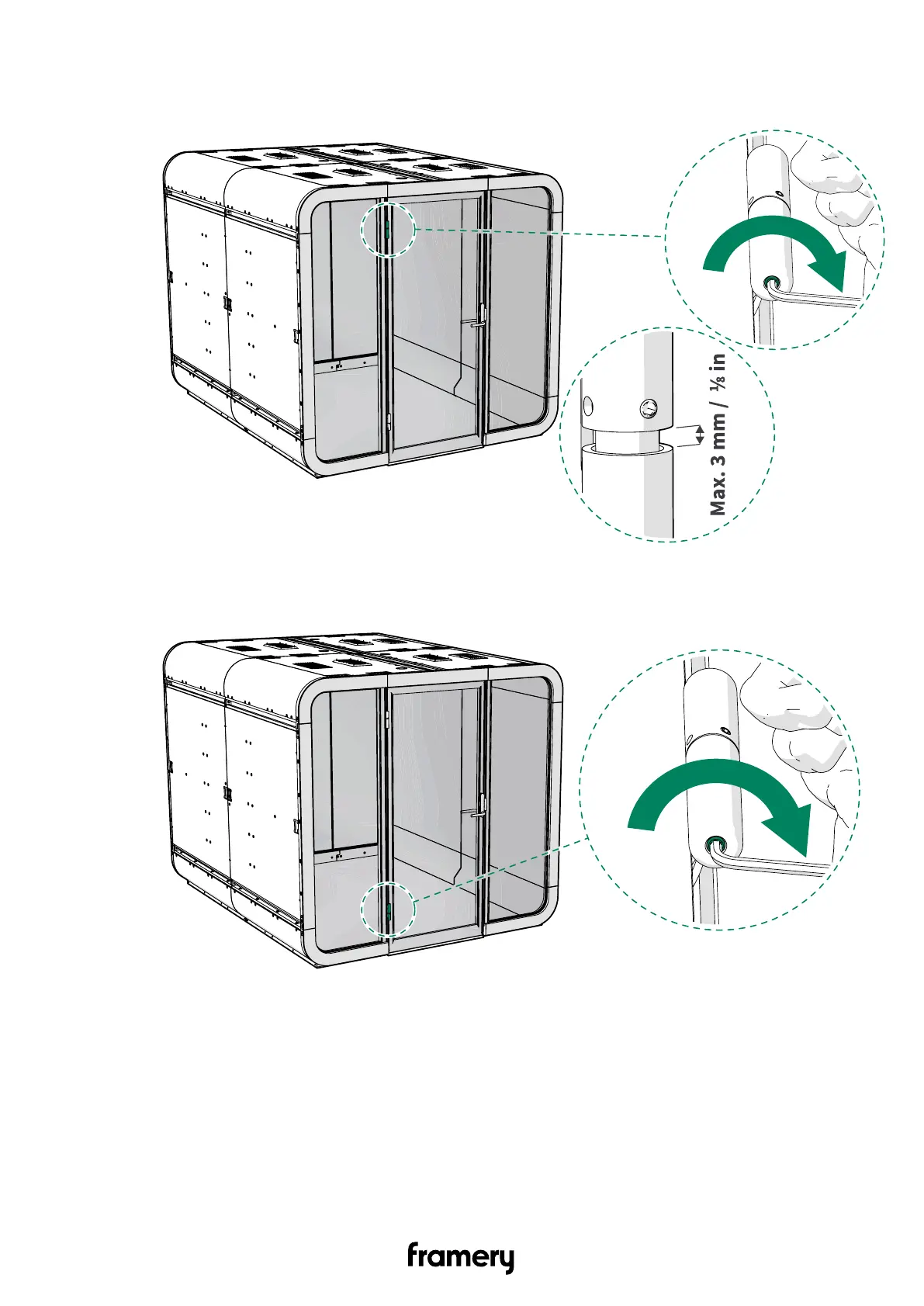

3. Turn the bottom screw of the upper hinge clockwise with a hex key.
Lift the door a maximum of 3 mm (1/8 in).
4. Adjust the lower hinge to the same level as the upper hinge.
The lower hinge is at the same level with the upper hinge when you feel resistance.
126
Installation instructions
