Framery 2Q Huddle
3.3 Installation space

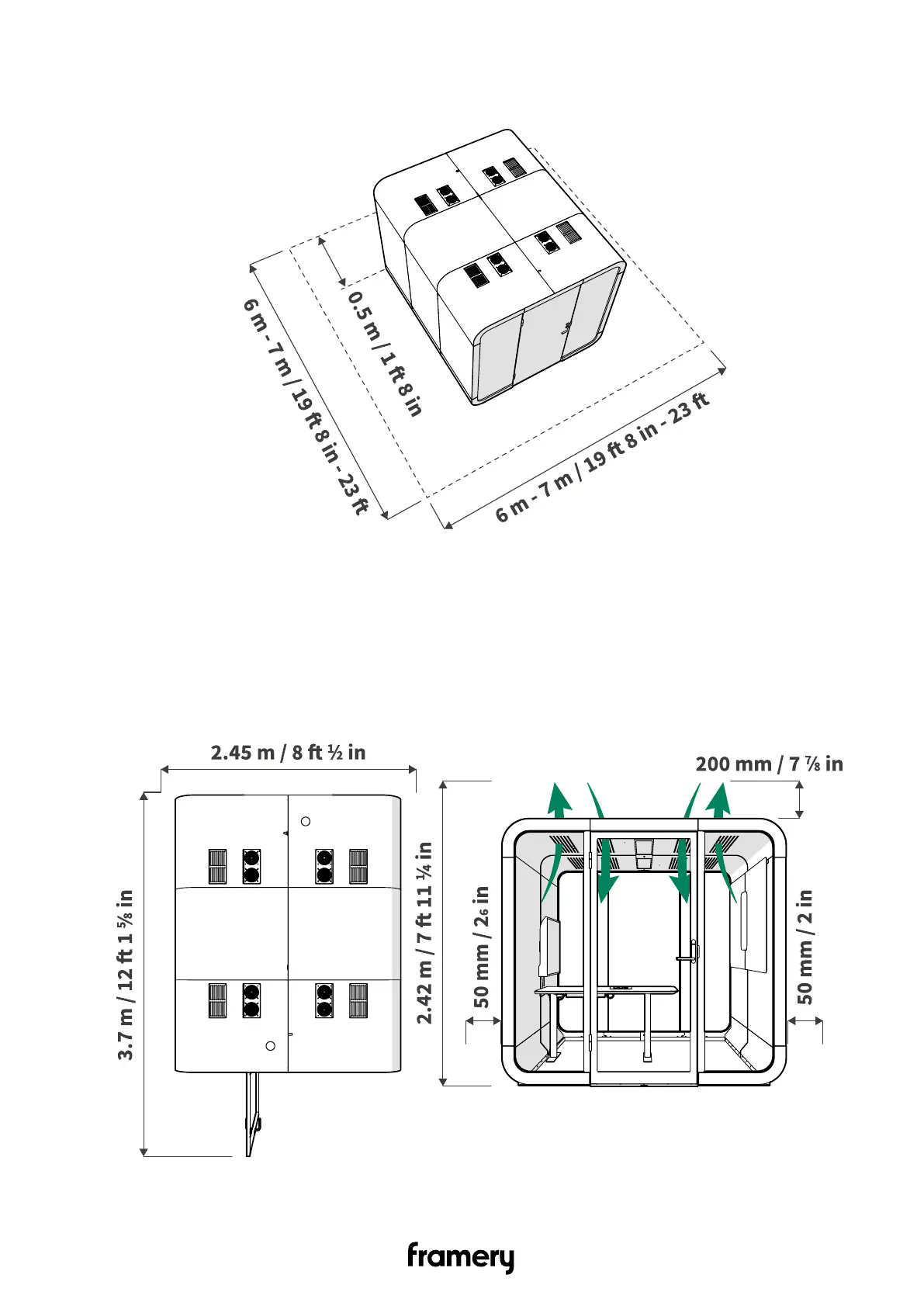

Figure 3: Installation space measurements of the 2Q pod
3.4 Operating space
When in use, the pod needs an area of 2.45 m (8 ft 1/2 in) x 3.7 m (12 ft 1 5/8 in) x 2.42
m (7 ft 11 3/8 in). The dimensions include the minimum recommended space for the air to
circulate: 200 mm (8 in) above the pod and 50 mm (2 in) around the pod.
16
Installation instructions
