Framery 2Q Huddle

11 Install the control unit

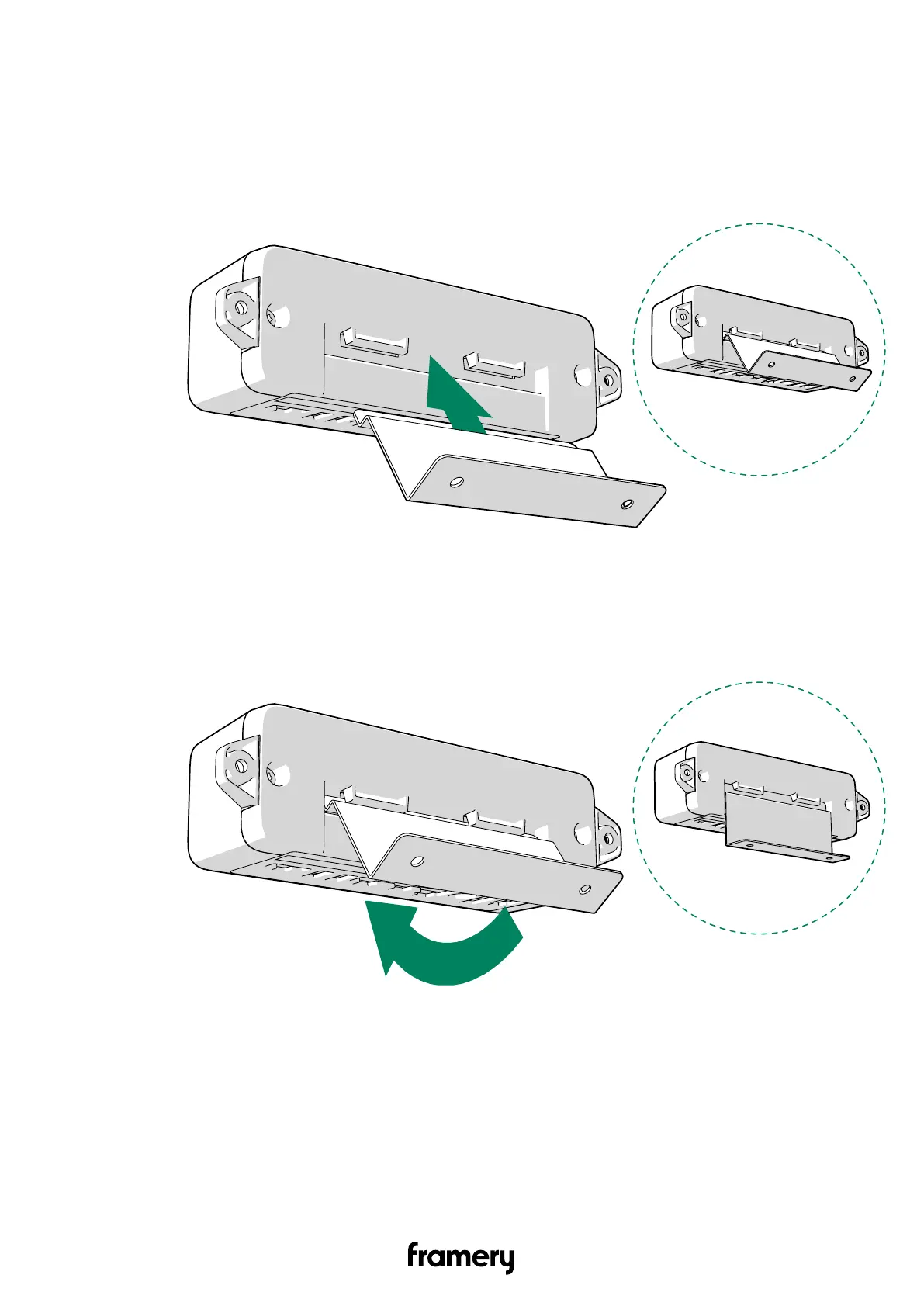

1. Insert the control unit bracket into the back of the control unit.

2. Turn the bracket into place.

Installation instructions
