Framery 2Q Huddle

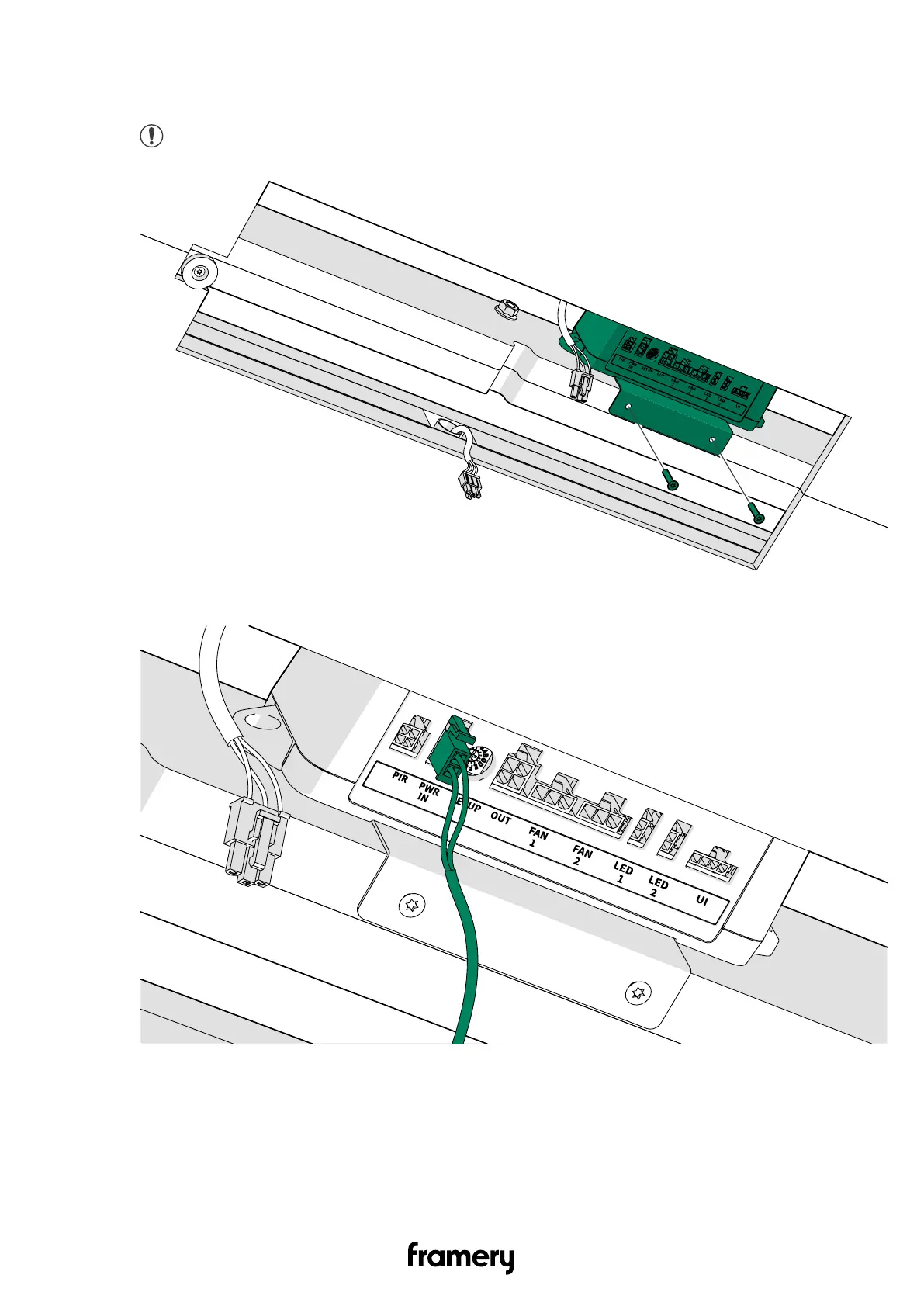

3. Install the bracket with the control unit into the back opening in the ceiling with 3x12

mm screws (2 pcs).

Note: Install the control unit on the right-hand side of the roof beam.

4. Connect the DC extension cord to the PWR IN connector of the control unit.

Installation instructions
