Framery 2Q Huddle

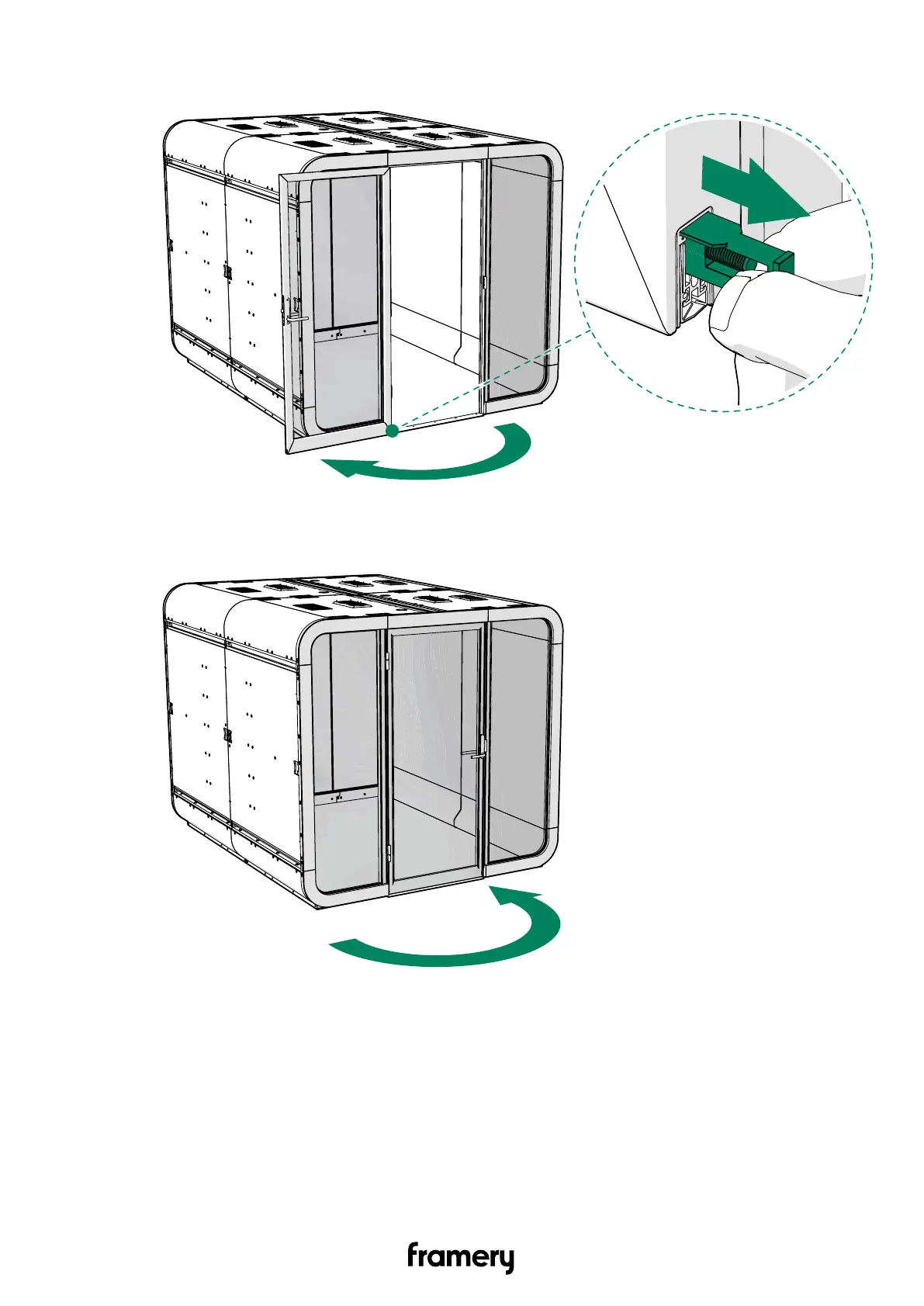

1. Pull out the adjustment stick from the lower inside frame of the door.

2. Close the door.

Installation instructions

info@frameryacoustics.com

125
