Framery 2Q Huddle

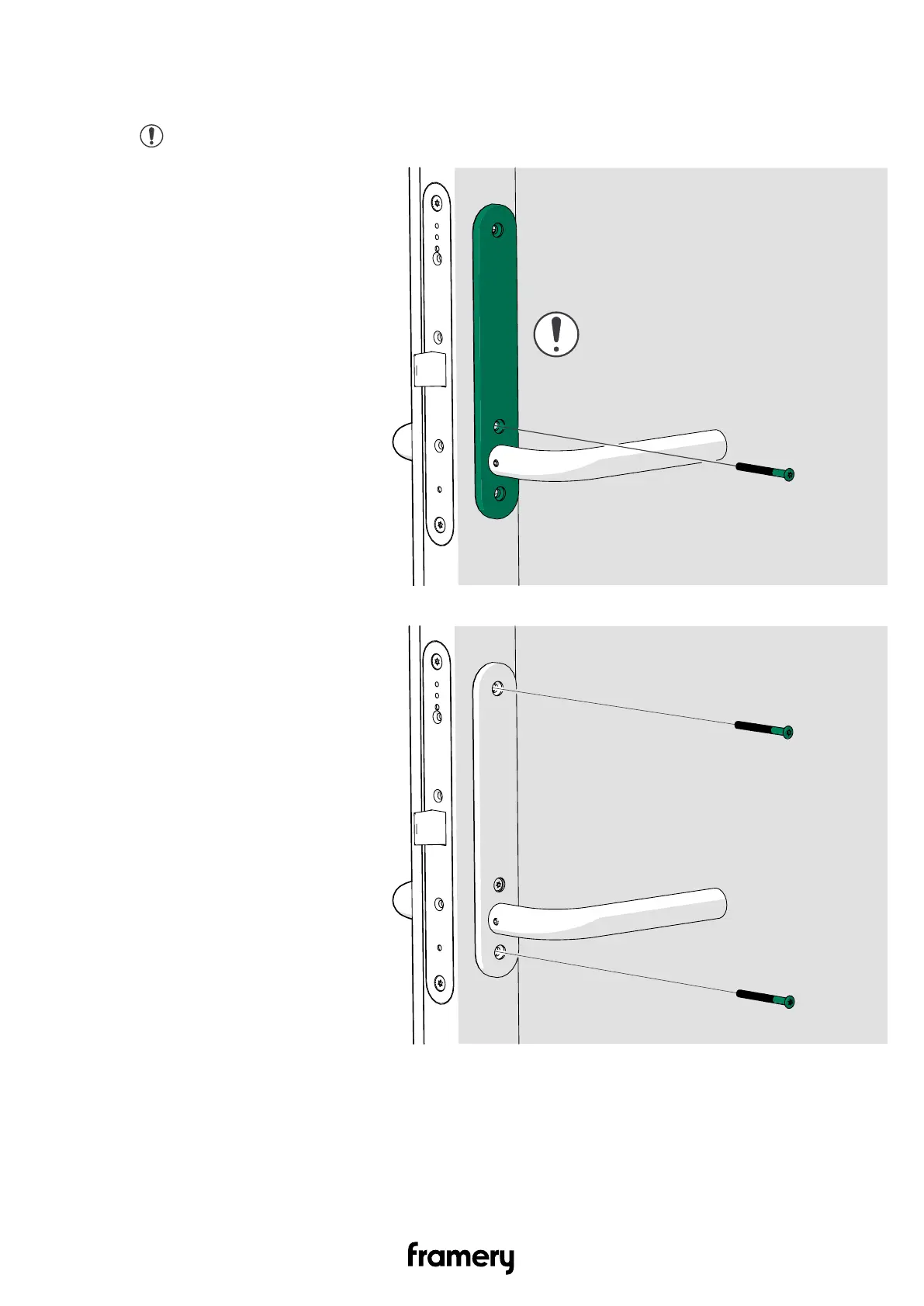

4. Install an M5x46 screw in the hole at the center of the handle from the inside of the

door.

Note: Check that the cover plate is positioned straight.

5. Install M5x46 screws (2 pcs) in the vacant holes from the inside of the door.

112

Installation instructions
