Framery 2Q Huddle

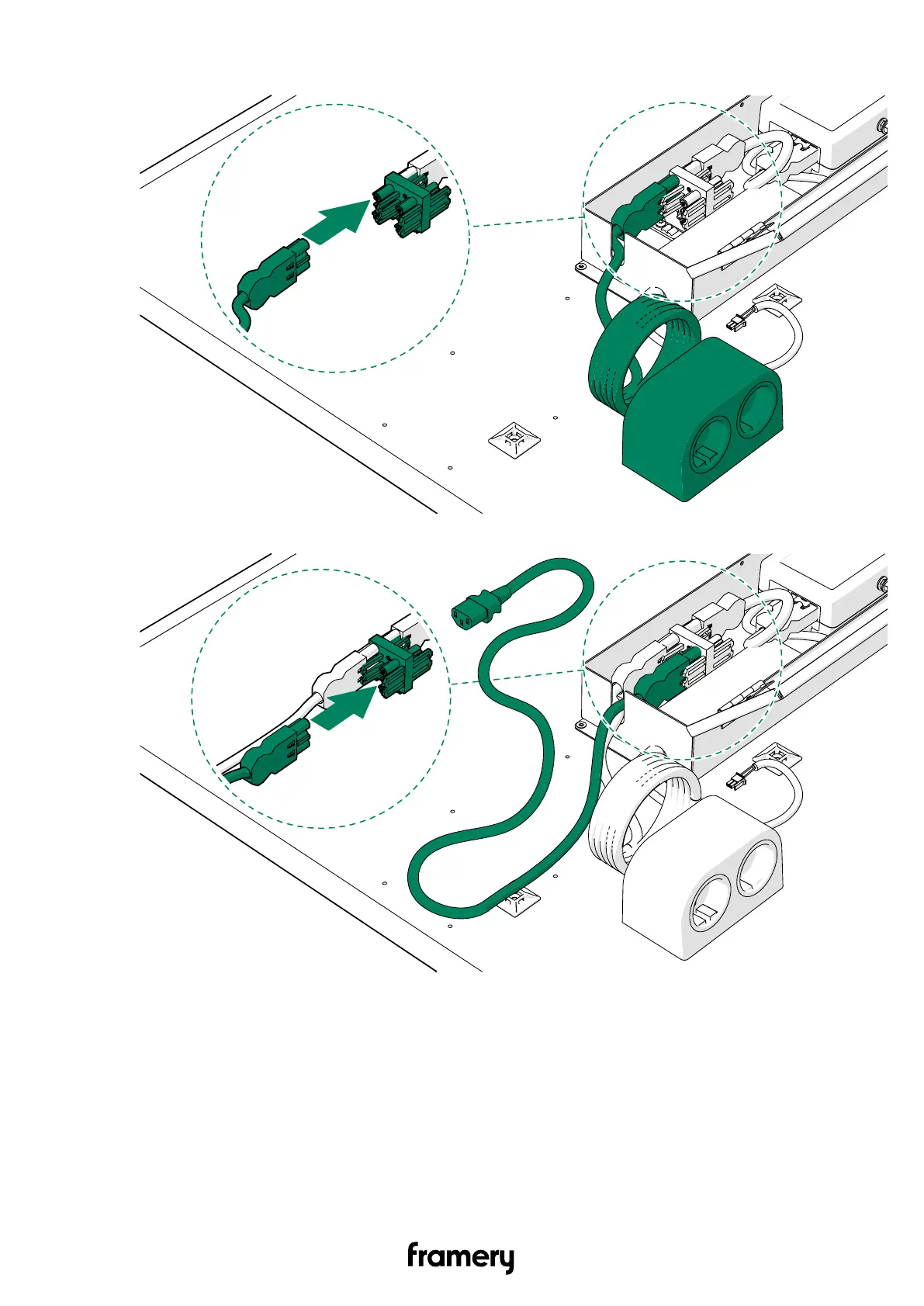

4. Connect the power outlet cord to the GST splitter.

5. Connect the optional display power cord to the GST splitter.

Installation instructions

info@frameryacoustics.com

135
