Framery 2Q Huddle

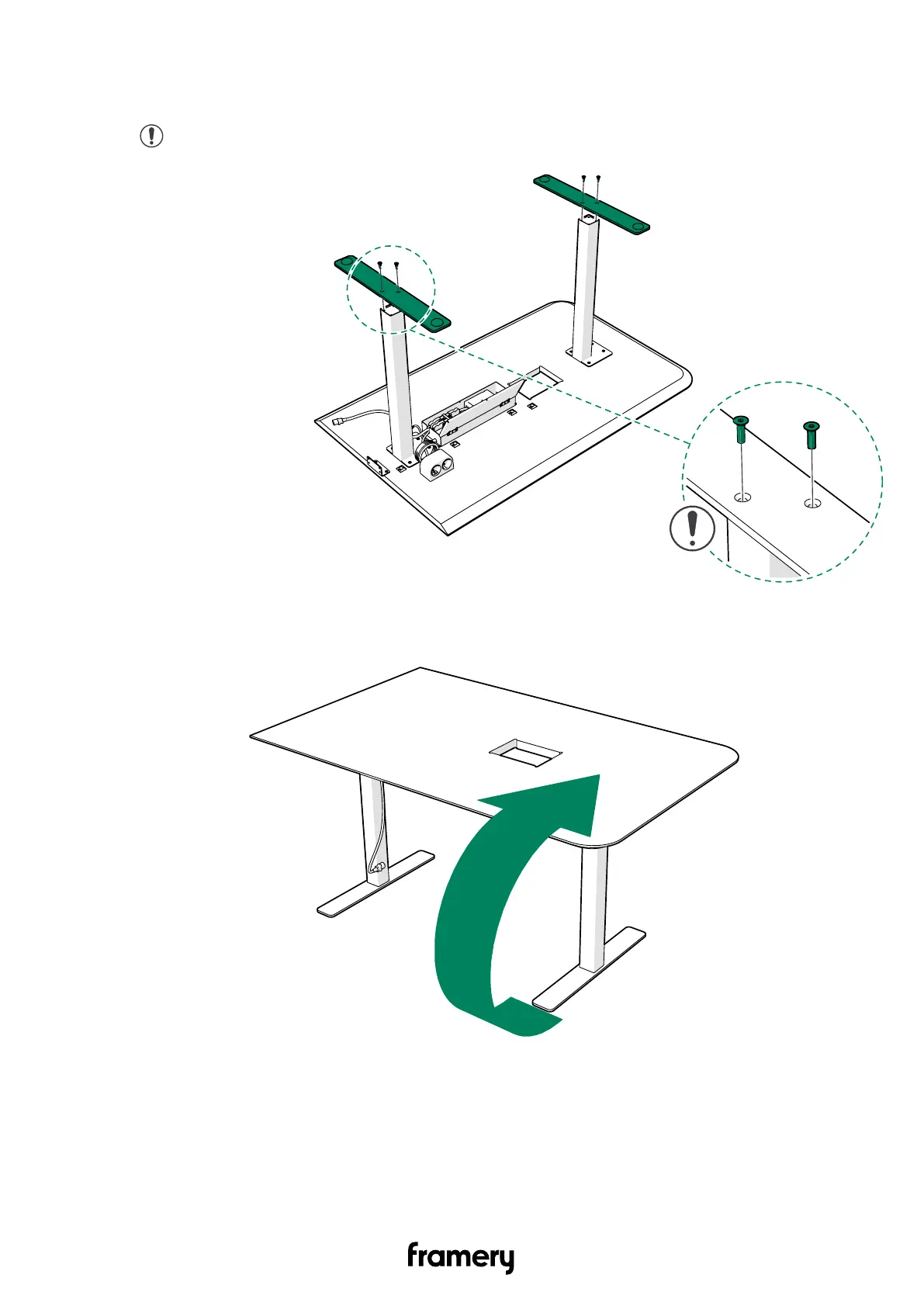

3. Install the support bars with black M6x20 countersunk screws (4 pcs) onto the table

legs.

Note: Place the countersunk holes upwards.

4. Lift the table up.

Installation instructions

info@frameryacoustics.com

137
