Framery 2Q Huddle

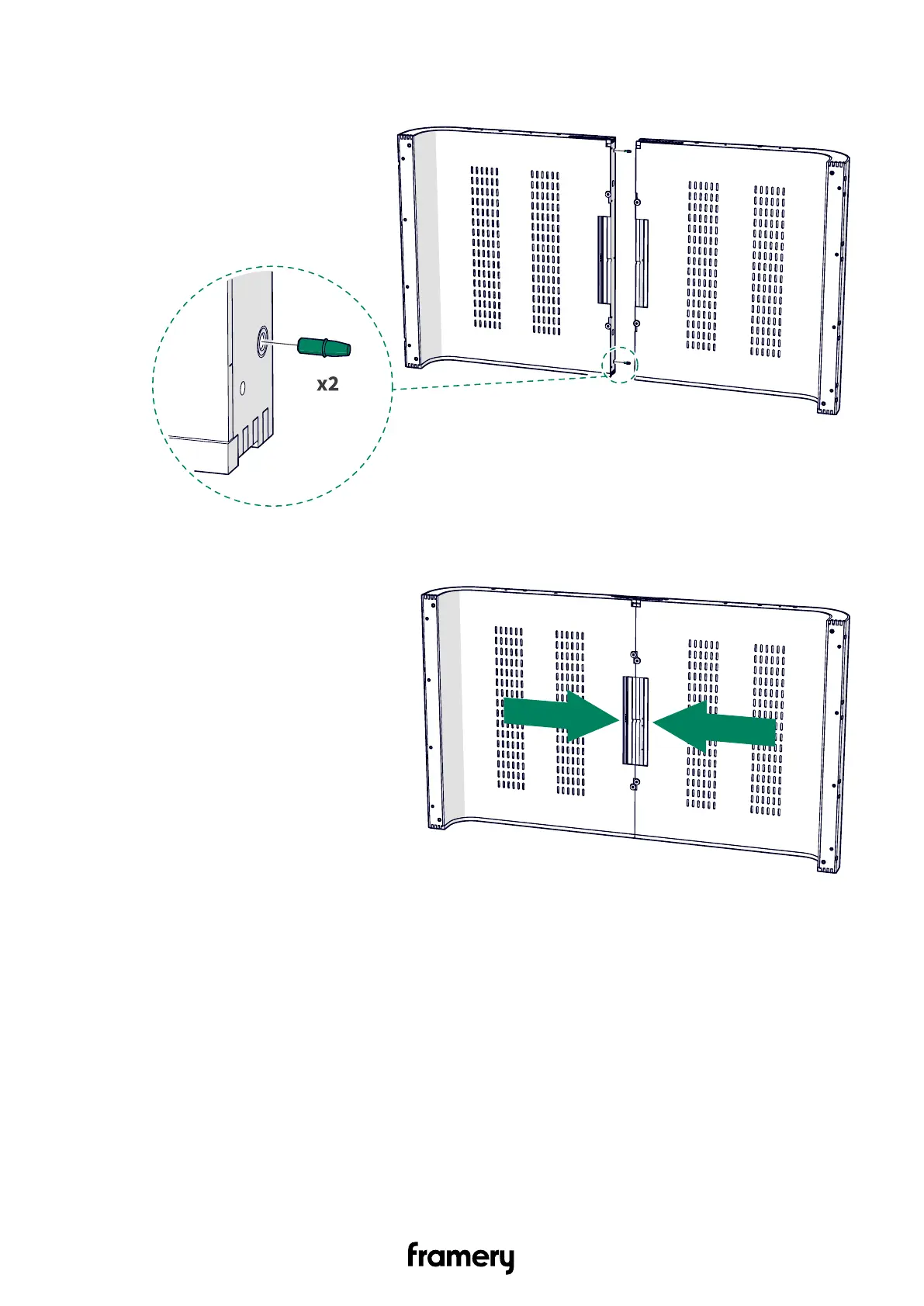

3. Install guide pins (2 pcs) into the installation holes.

4. Push the roof modules together.

Installation instructions
