Framery 2Q Huddle

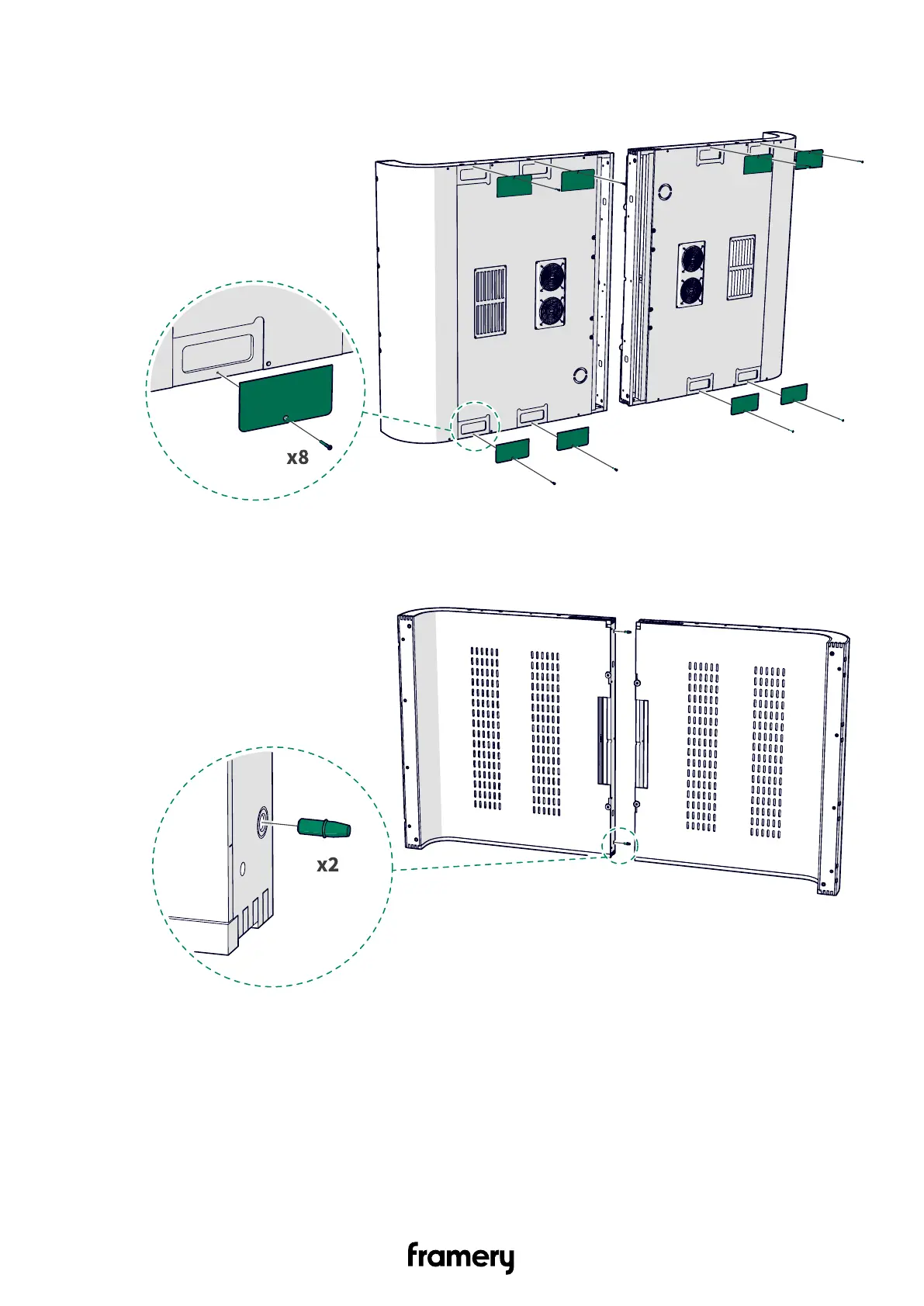

2. Unscrew the 4x30 screws (8 pcs) and remove the cover plates (8 pcs). Set the cover

plates and screws aside.

3. Install guide pins (2 pcs) into the installation holes.

Installation instructions
