Framery 2Q Huddle

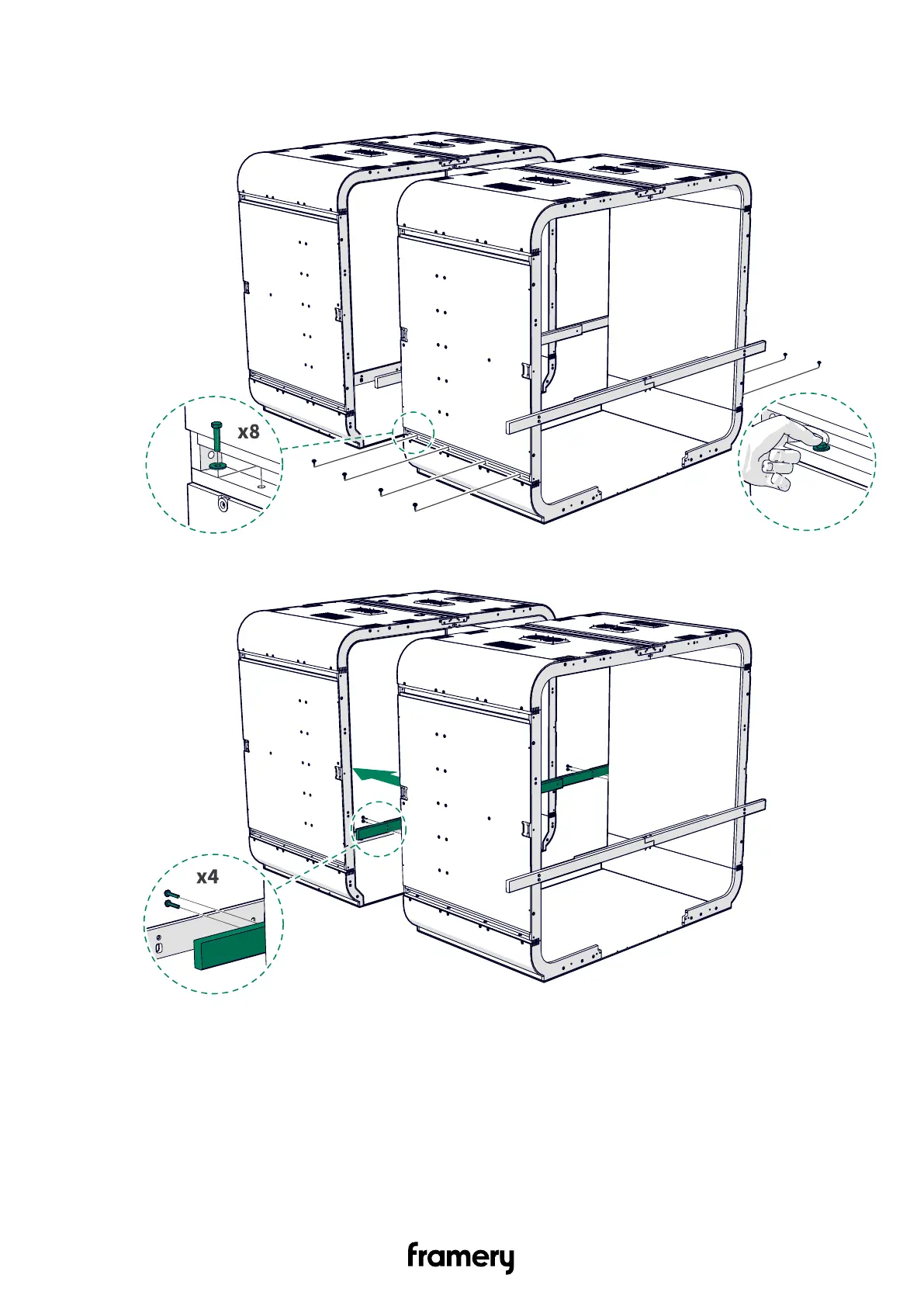

2. Install M8x35 bolts (4 pcs each side) and M8 washers (4 pcs each side). Tighten the

screws by hand.

3. Remove the inner support beam and store it for later use.

Installation instructions
