Framery 2Q Huddle

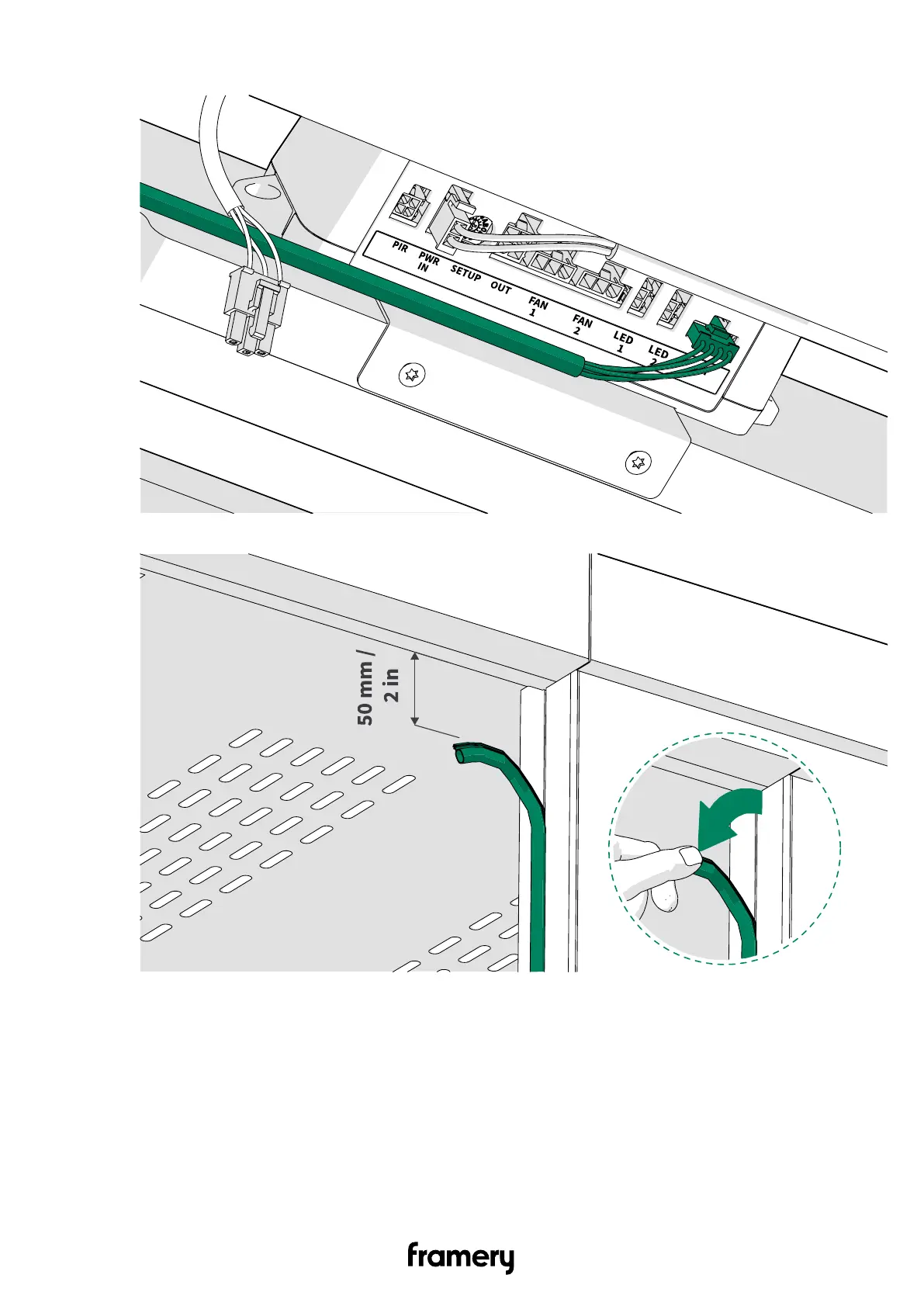

3. Connect the control panel cord to the UI connector of the control unit.

4. Peel back 50 mm (2 in) of the strike plate-side glass frame seal from the door frame.

Installation instructions
