Fronius TPS 600i - Connecting MIG;MAG Welding Torches to the Wire-Feed Unit

62
Connecting MIG/
MAG welding
torches to the
wire-feed unit
Check that all cables, leads and hose-
packs are undamaged and correctly in-
sulated

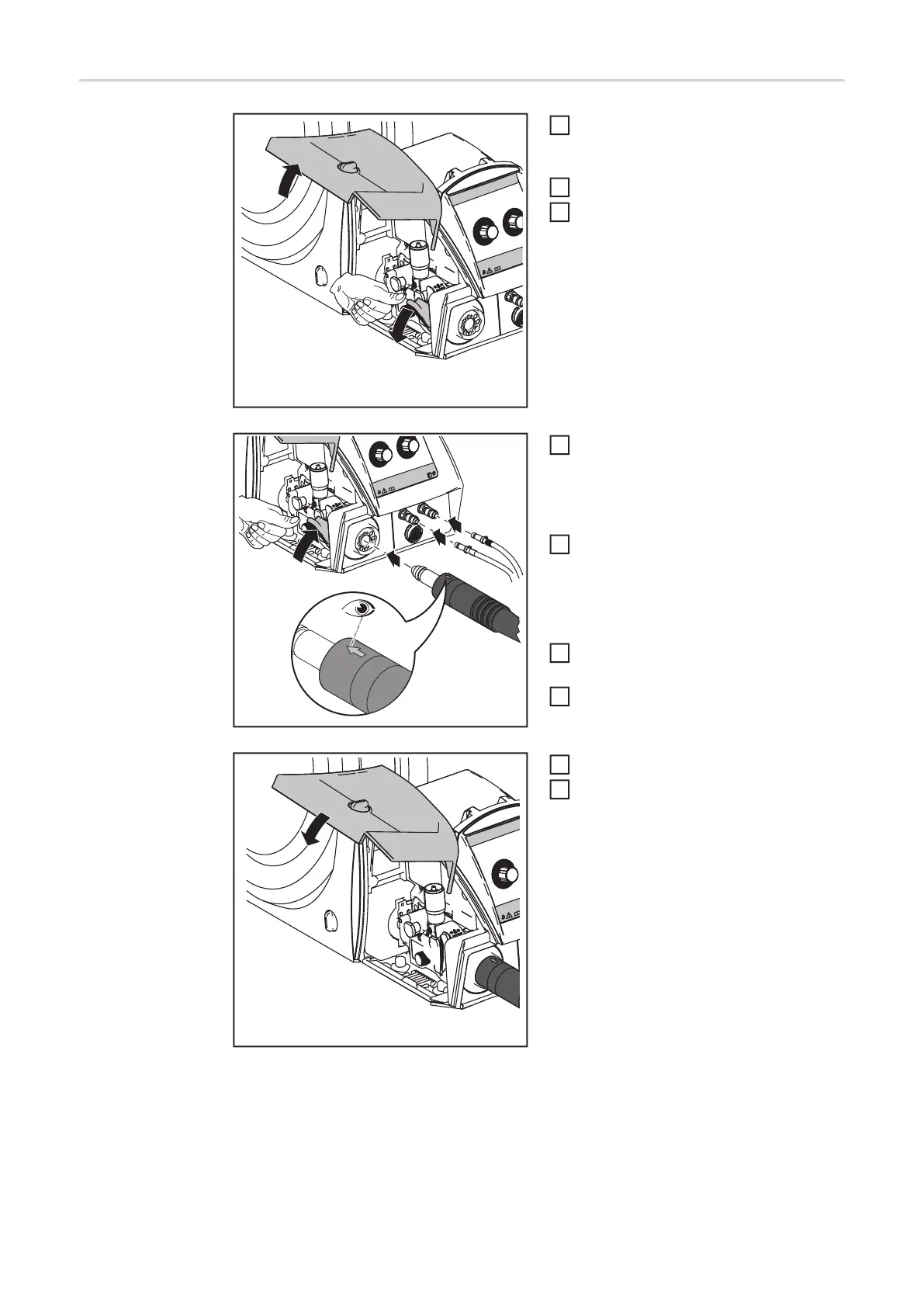

Open the wire drive cover
Open the clamping lever on the wire
drive
Check that the welding torch is correc-
tly and completely tooled up. Insert it -
marking at the top first - into the wel-
ding torch connection on the wire-feed
unit
Close the clamping lever on the wire
drive
Connect the coolant flow hose to the
coolant flow connection (blue)
Connect the coolant return hose to the
coolant return connection (red)
Close the wire drive cover
Check that all connections are connec-
ted properly
3
2
1
2
3
4
7
6
*
5
* On water-cooled welding torches:
4
5
6
7
8
8
9
