Unplug the earth lead (5).
Remove the cover (6) and insulating
sheet (7).
Opening the
TP180 housing

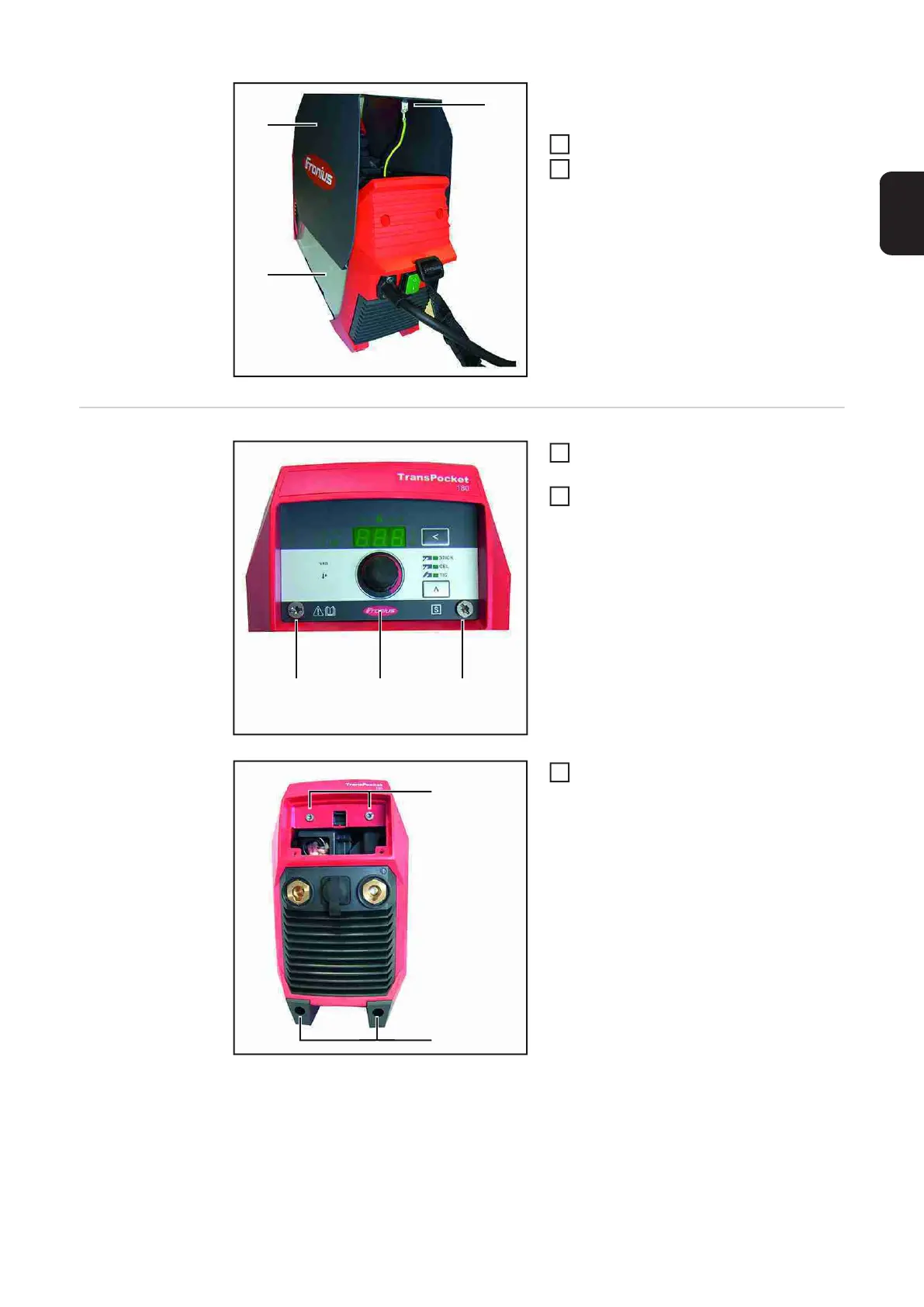

Remove the two M5x18 TX25 screws
(1) on the control panel.
Swing the control panel (2) to one side.
Remove the four M5x18 TX25 screws
(3) on the front of the device.
(5)
(6)
(7)
IMPORTANT! Press the locking device on
the flat connector to unplug the earth lead.
6
7
(1)(1) (2)
1
2
(3)
(3)
3
