Fronius TransPocket 150 - Closing the TP180 Housing

97
EN

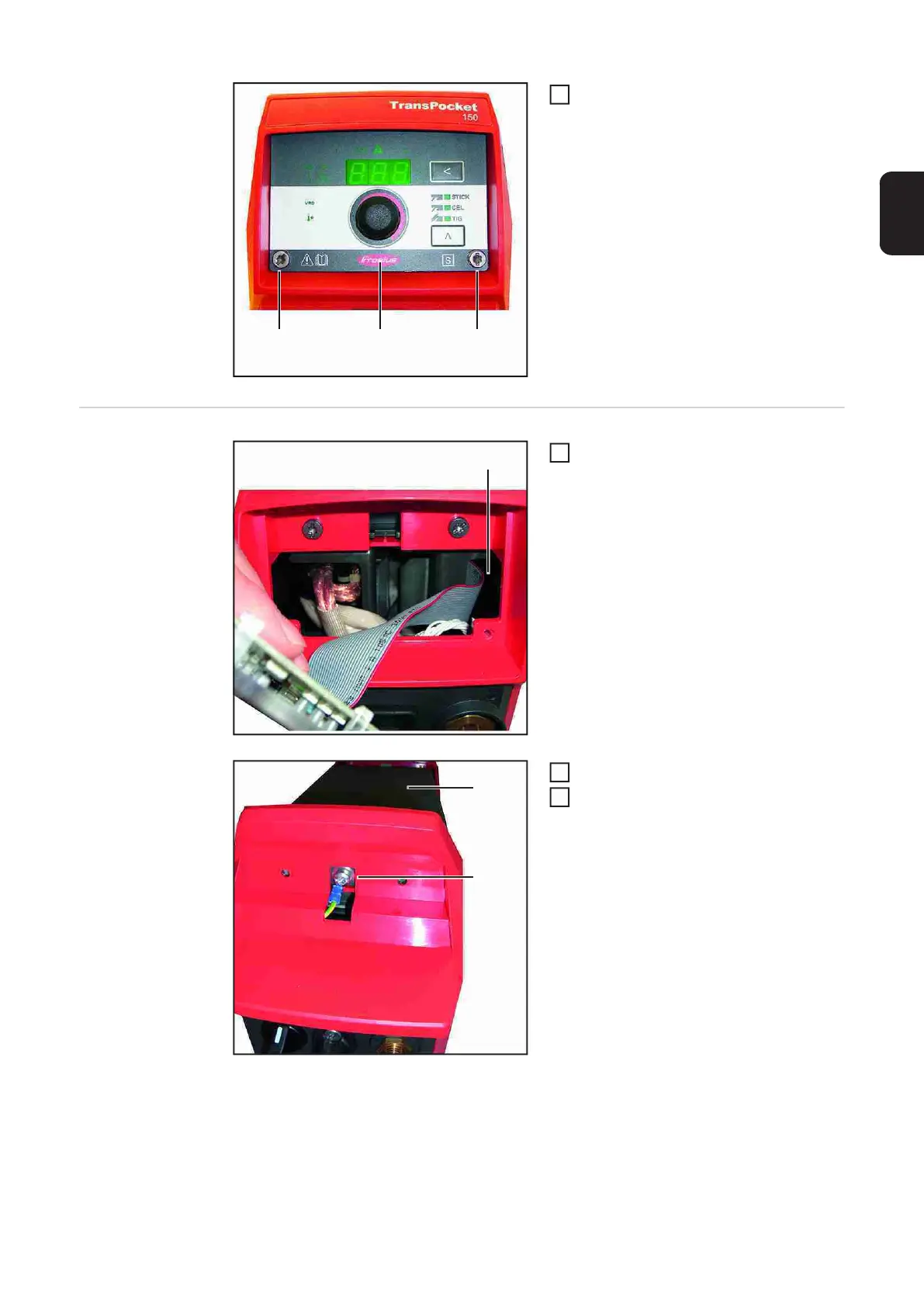

Secure the control panel (8) with two
PT 4x12 TX20 screws (7)
Tightening torque = 1.5 Nm
Closing the
TP180 housing
Pull out the control panel ribbon cable
(1)
Fit the cover (2)
Secure the earth lead with a TX25
screw (3)
Tightening torque 3.0 Nm
(7) (7)(8)
7
(1)
1
(2)
(3)
2
3
