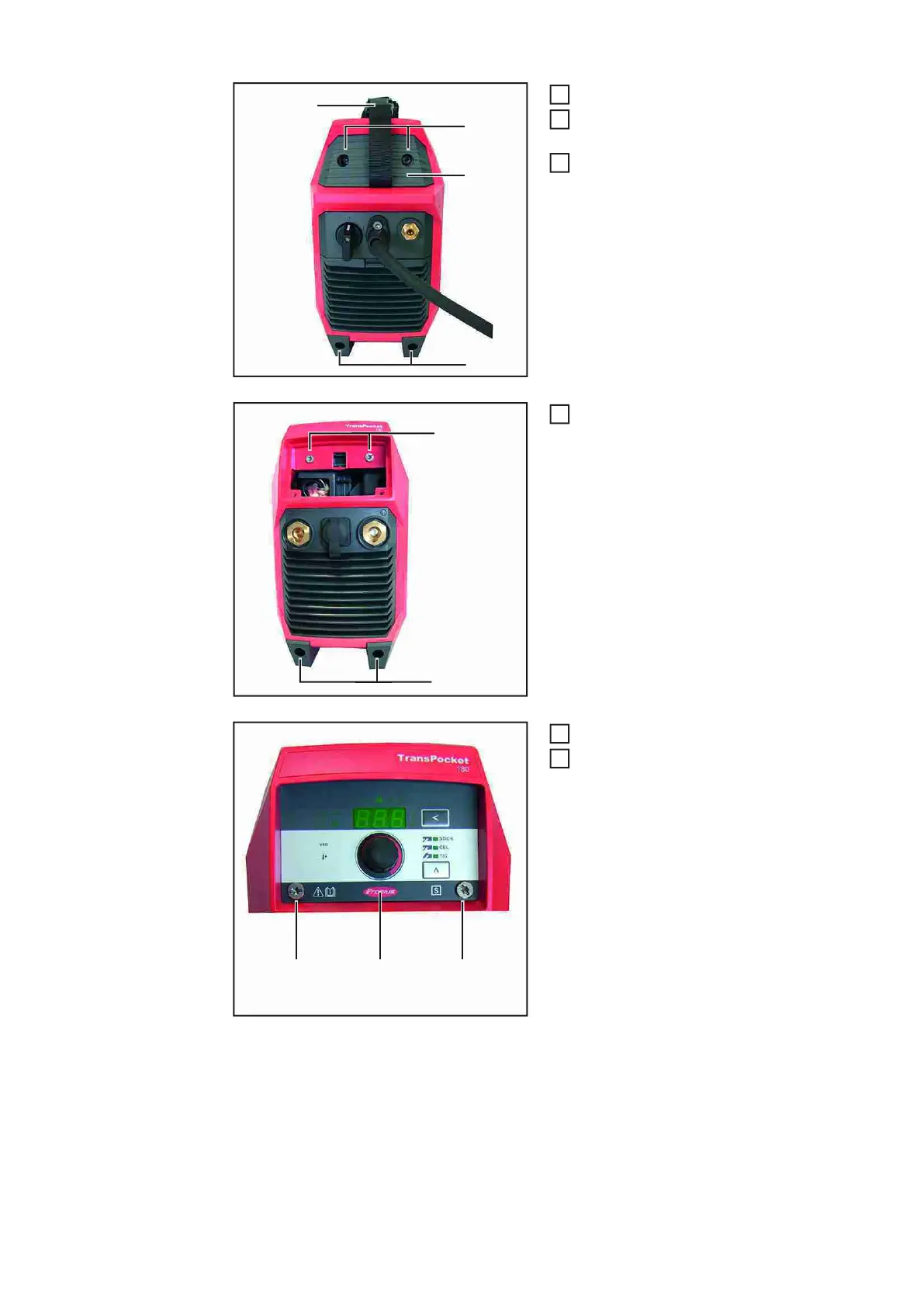

Insert the handle
Position the belt (6) and cover (5) as
shown
Fit four M5x18 TX25 screws (4)
Tightening torque= 3.0 Nm
Fit four M5x18 TX25 screws (7) to the
front of the device
Tightening torque = 3.0 Nm
Fit the control panel (9)
Secure the control panel with two
M5x18 TX25 screws (8)
Tightening torque = 2.7 Nm
(4)
(4)
(5)
(6)
4
5
6
(7)
(7)
7
(8)(8) (9)
8
9
