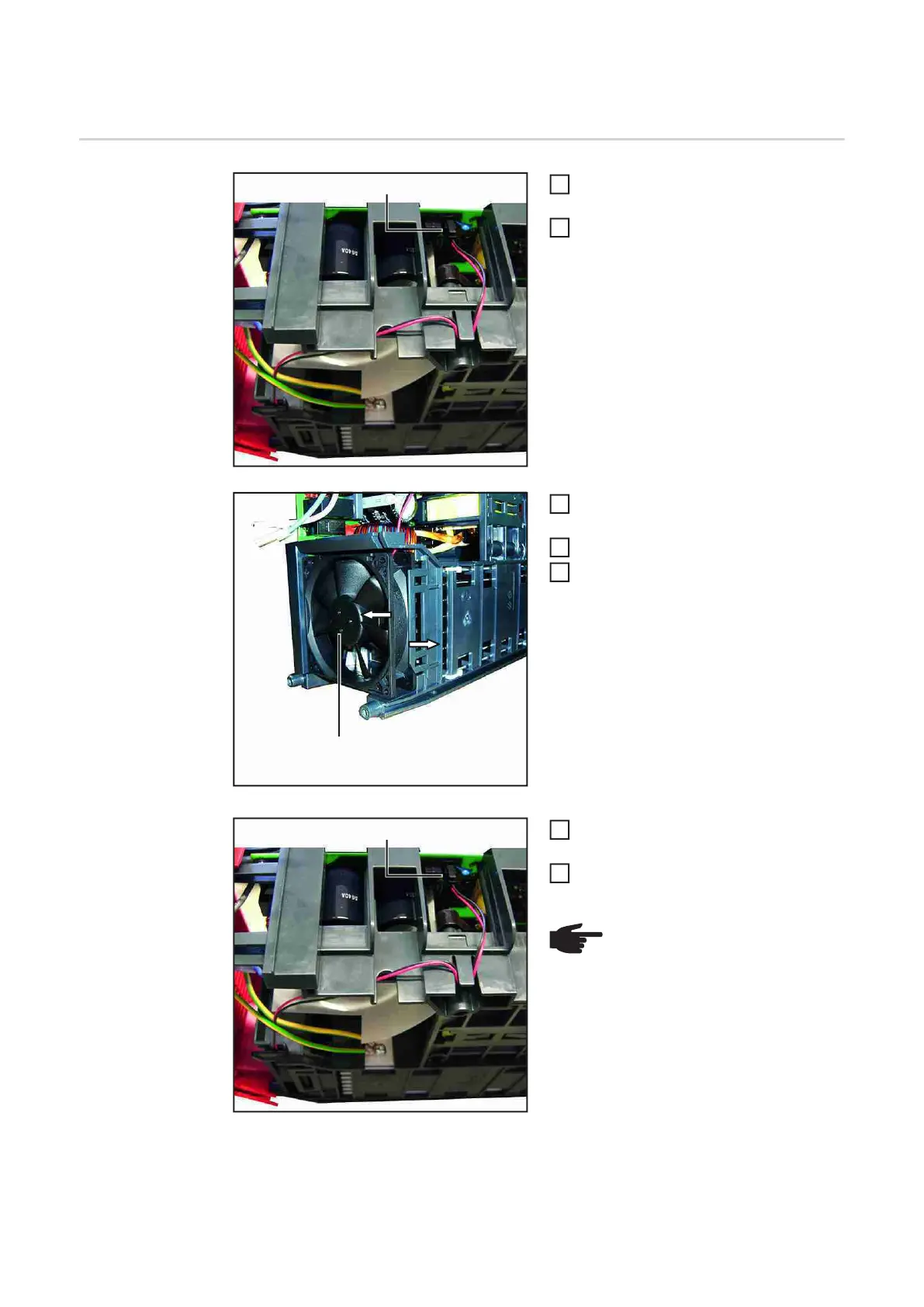

Replacing the fan
Replacing
the
TP150 fan
Open the housing as described in the
section "Opening the TP150 housing"
Unplug the fan lead (1) from the
BPS1500 PC board and feed it out
Remove the fan by simultaneously pul-
ling the locking hooks and the fan
Remove the fan (2)
Install the new fan (2)
- The arrow on the fan must point
backwards
- The fan leads must be on top and
facing the outside
Plug the fan lead (1) into the BPS1500
PC board
Close the housing as described in sec-
tion "Closing the TP150 housing"
(1)
1
2
(2)
IMPORTANT! Before installing the fan, ob-
serve the direction of installation and cable
routing.
3
4
5
(1)
NOTE! Use the correct fan!
- For power modules earlier
than version V0.8B_D (black
plug slot), use the fan with
item number 43,0006,0314
- For power modules from ver-
sion V0.8B_D (white plug slot
+ plug sleeve), use the fan
with item number
43,0006,0328
6
7
