L/R alignment Calibration of welding circuit inductivity and resistance can be done both in TIG setup 2nd
and rod electrode setup 2nd.
NOTE! L/R alignment must be carried out separately for each welding process.
Enter TIG setup 2nd or rod electrode setup 2nd
Select 'L/R align.' by turning the adjustment dial:
Press the adjusting dial

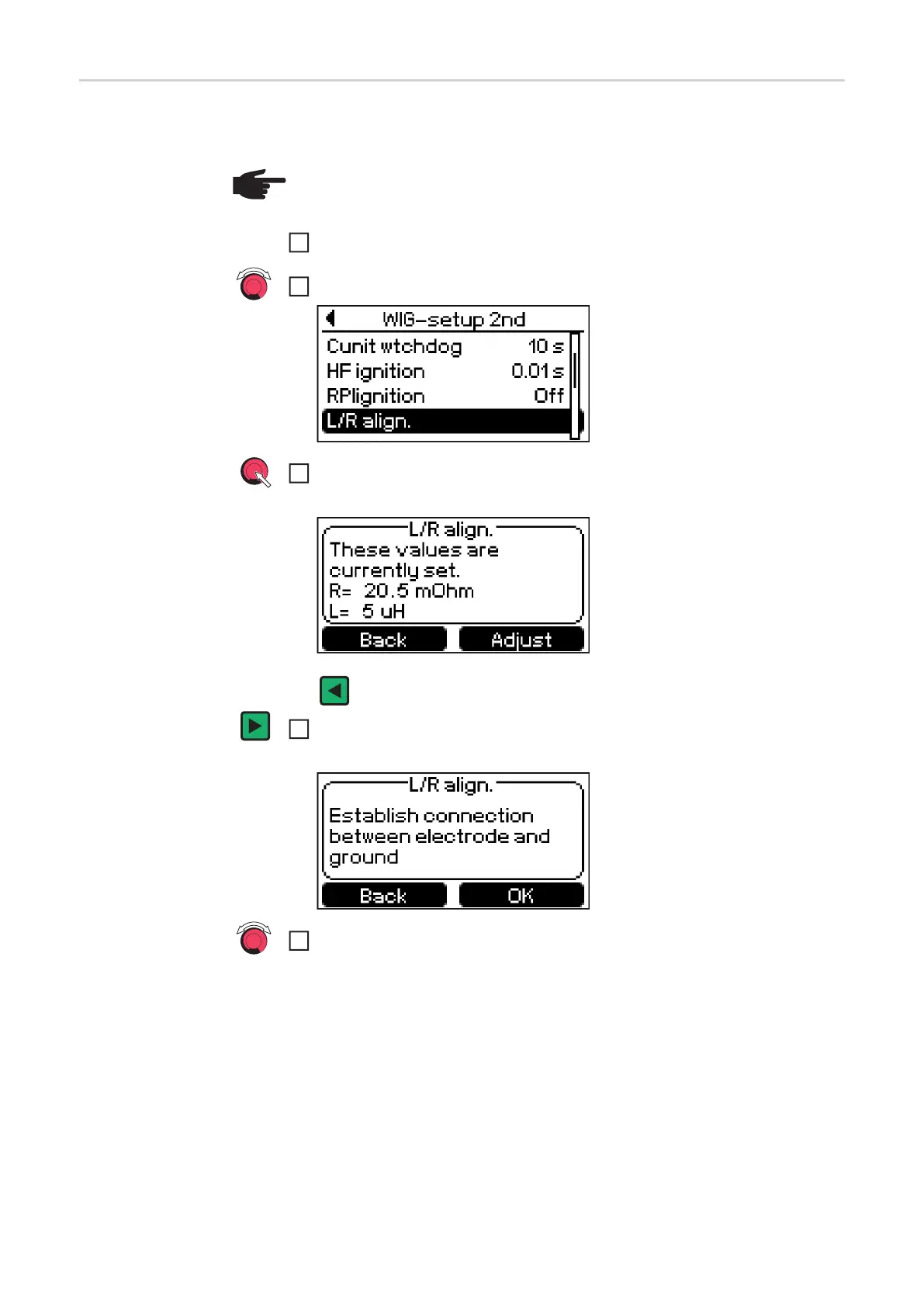

The first L/R alignment screen is displayed:
In the following L/R alignment screens, pressing the left button takes
you back to the previous screen.
Press the right button
The second L/R alignment screen is displayed:
Follow the instructions shown
IMPORTANT! Make sure that the contacts between the earthing clamp and
workpiece and the electrode and workpiece are on a cleaned section of the
workpiece. While the measurement is being performed, the cooling unit and
the cold wire-feed unit are deactivated.
During manual metal arc welding, place the electrode holder instead of the
tungsten electrode fully on the workpiece.
