68

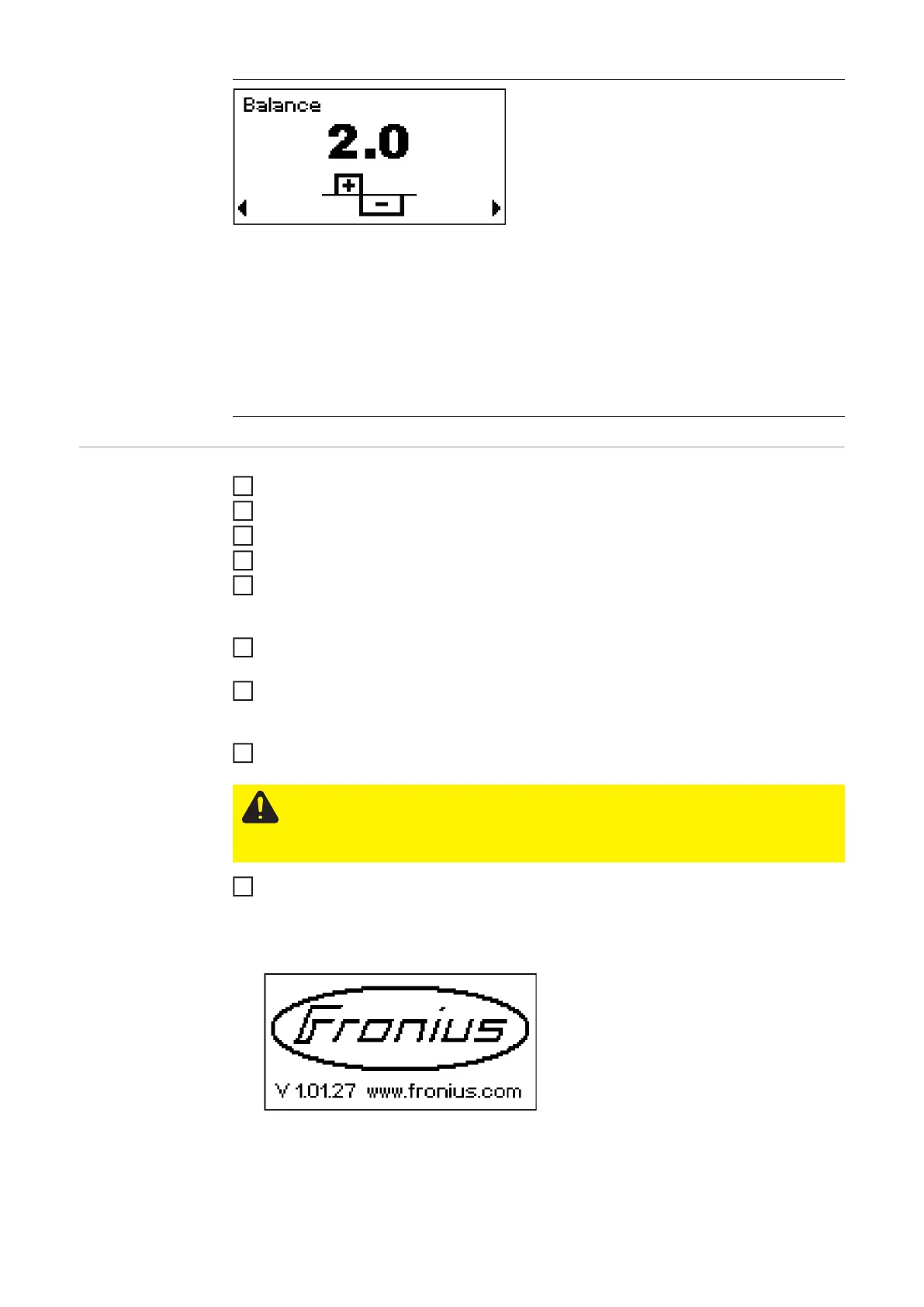

Preparation Switch off cooling units (set-up parameter C-C to OFF)
Move the mains switch to the O position
Disconnect the mains plug
Disconnect the TIG welding torch
Plug the grounding (earthing) cable in and latch it into place:
- for MagicWave: in the grounding (earthing) cable connection
- for TransTig: in the (+) current socket
Use the other end of the grounding (earthing) cable to establish a connection to the
workpiece
Plug in the electrode cable and twist it clockwise to latch it into place:
- for MagicWave: in the welding torch connection
- for TransTig: in the (-) current socket
Plug in the mains plug
Move the mains switch to the I position
The starting sequence with the Fronius logo, current firmware version and Fronius in-
ternet address is displayed for approx. 1 second:
only with MagicWave for the manual metal arc AC welding process
Unit 1
Setting range -5 - +5
Factory setting 0
-5: highest fusing power, lowest cleaning action
+5: highest cleaning action, lowest fusing power
CAUTION! Risk of injury and damage from electric shock. As soon as the mains
switch is in the "I" position, the rod electrode in the electrode holder is live. Make
sure that the rod electrode does not touch any persons or electrically conducting
or earthed parts (e.g. the housing etc.).
