38
TransTig
4000 Comfort

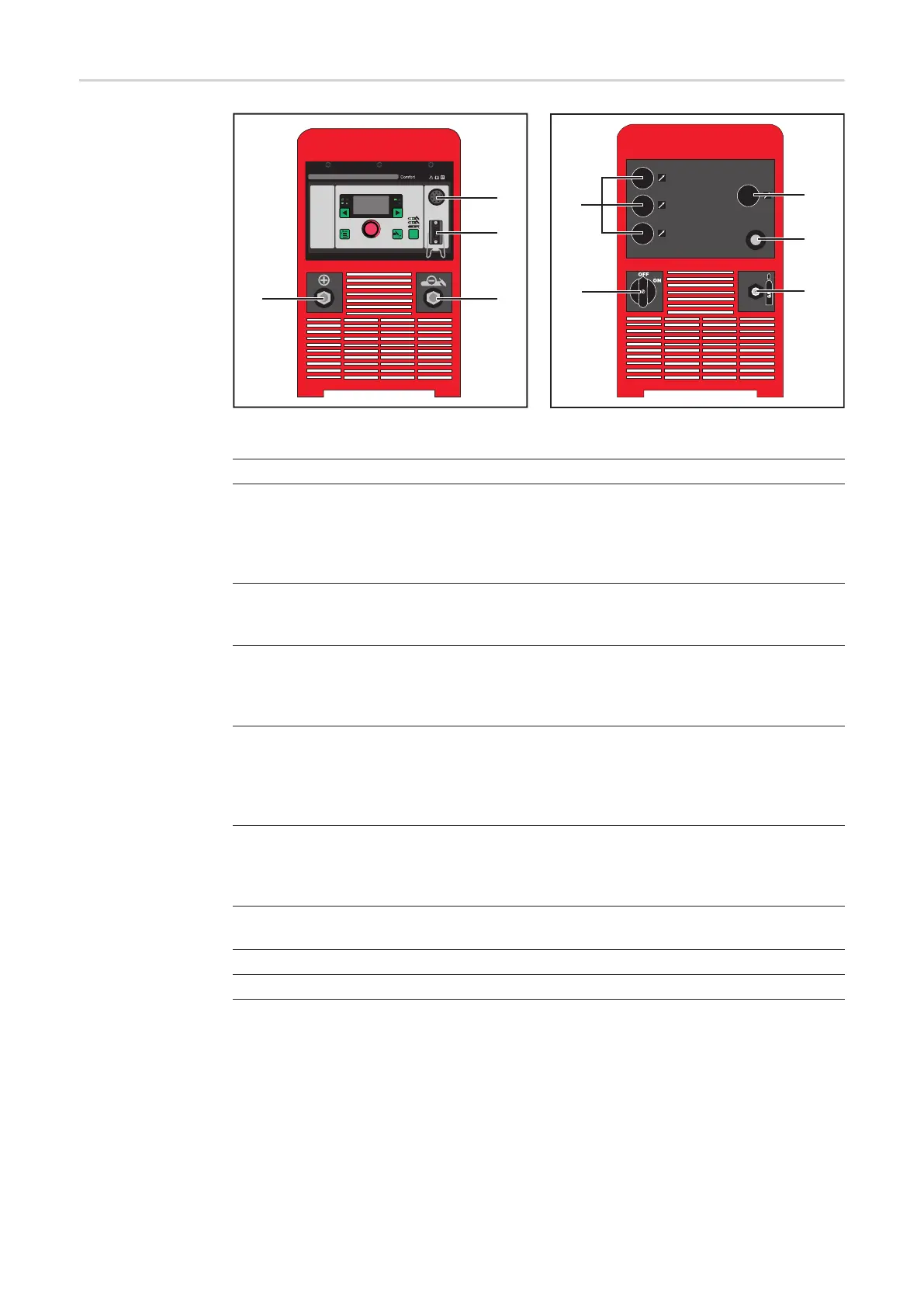

TransTig 4000 Comfort - front TransTig 4000 Comfort - rear
TransTig 4000
(1)
(2)
(3)
(4)
(7)
(6)
(5)
(8)
(6)
No. Function
(1) (+) current socket with bayonet latch
for connecting
- the grounding (earthing) cable when TIG welding
- the electrode cable or grounding (earthing) cable during MMA welding (de-
pending on the type of electrode)
(2) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, JobMas-
ter TIG welding torch, etc.)
(3) Torch control connection
- for connecting the control plug of a conventional welding torch
- input for the collision protection signal when a robot interface or field bus cou-
pler is connected
(4) (-) current socket with bayonet latch
for connecting
- the TIG welding torch
- the electrode cable or grounding (earthing) cable during MMA welding (de-
pending on the type of electrode)
(5) Mains switch
for switching the power source on and off
OFF = - O -
ON = - I -
(6) Blanking cover
reserved for LocalNet connection
(7) Mains cable with strain relief device
(8) Shielding gas connection
