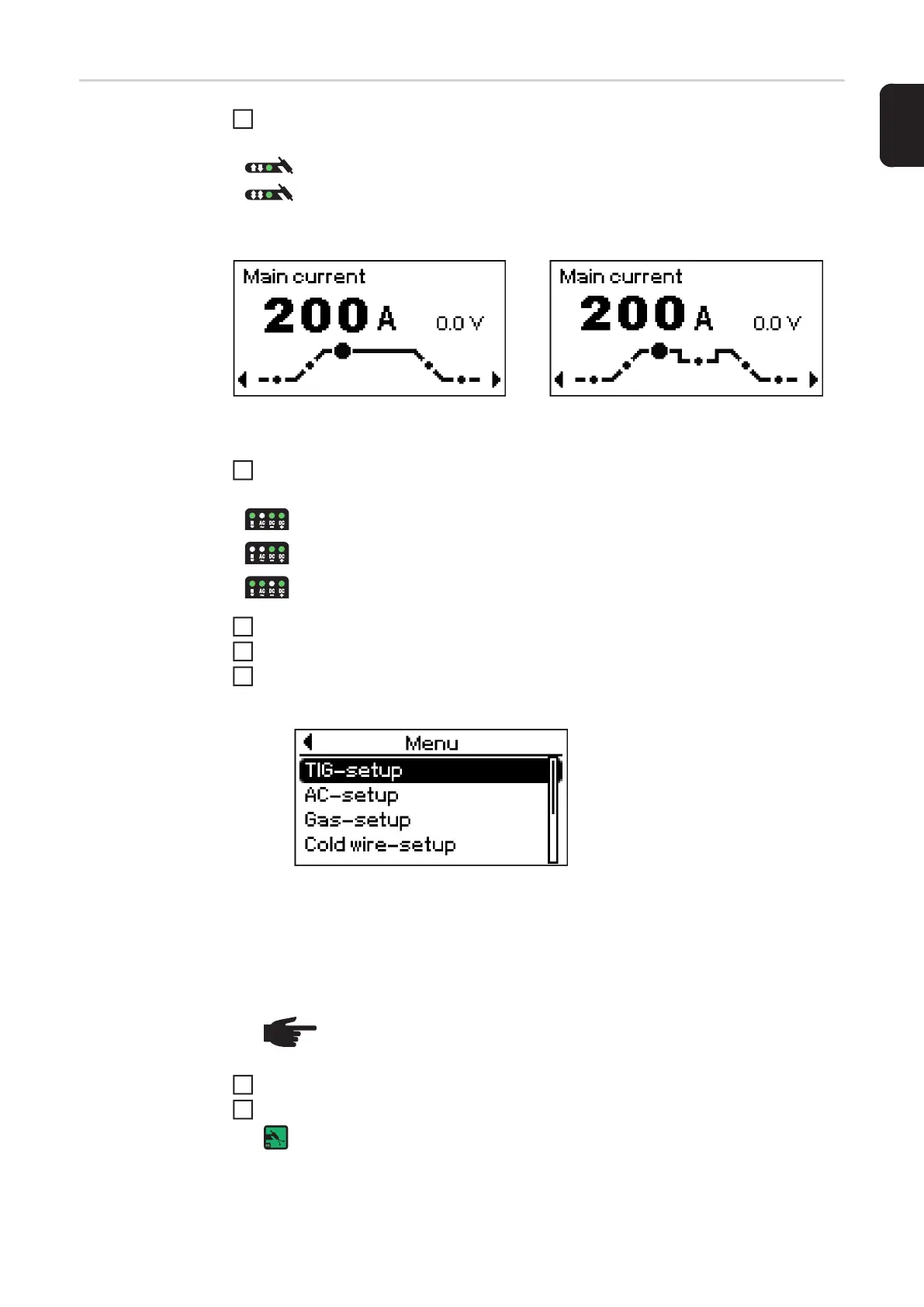

TIG welding Press the Mode button to select the required TIG mode:
The image for the TIG welding parameter is shown on the display:
TIG welding parameters for 2-step mode (main current
welding parameter selected)
TIG welding parameters for 4-step mode (main current
welding parameter selected)
Only with MagicWave: Press the Mode button to select the required TIG mode:
Use the right arrow key to select the relevant welding parameters
Use the adjusting dial to set the selected welding parameter to the required value
If necessary, additional welding parameters can be set in the set-up menu:
- Press the menu key
The relevant menu is displayed:
- Use the adjusting dial to select the desired set-up menu
- Open the selected set-up menu by pressing the adjusting dial
- Use the adjusting dial to select the welding parameter
- To change the welding parameter press the adjusting dial
- Change the welding parameter value using the adjusting dial
- Press the adjusting dial
- Exit the set-up menu
Open the gas cylinder valve
Set the shielding gas flow rate:
Press the Gas test button
The test gas flow lasts for a maximum of 30 seconds. Press the button again to
stop the gas flow prematurely.
- Turn the adjusting screw on the underside of the pressure regulator until the pres-
sure gauge shows the required gas flow rate
2-step mode
4-step mode
1
AC welding process
AC welding process with automatic cap-shaping function
DC welding process
NOTE! All welding parameter set values that have been set using the adjust-
ing dial remain stored until the next time they are changed. This applies even
if the power source is switched off and on again in the meantime.
2
3
4
5
6
7
