31
EN
TransTig

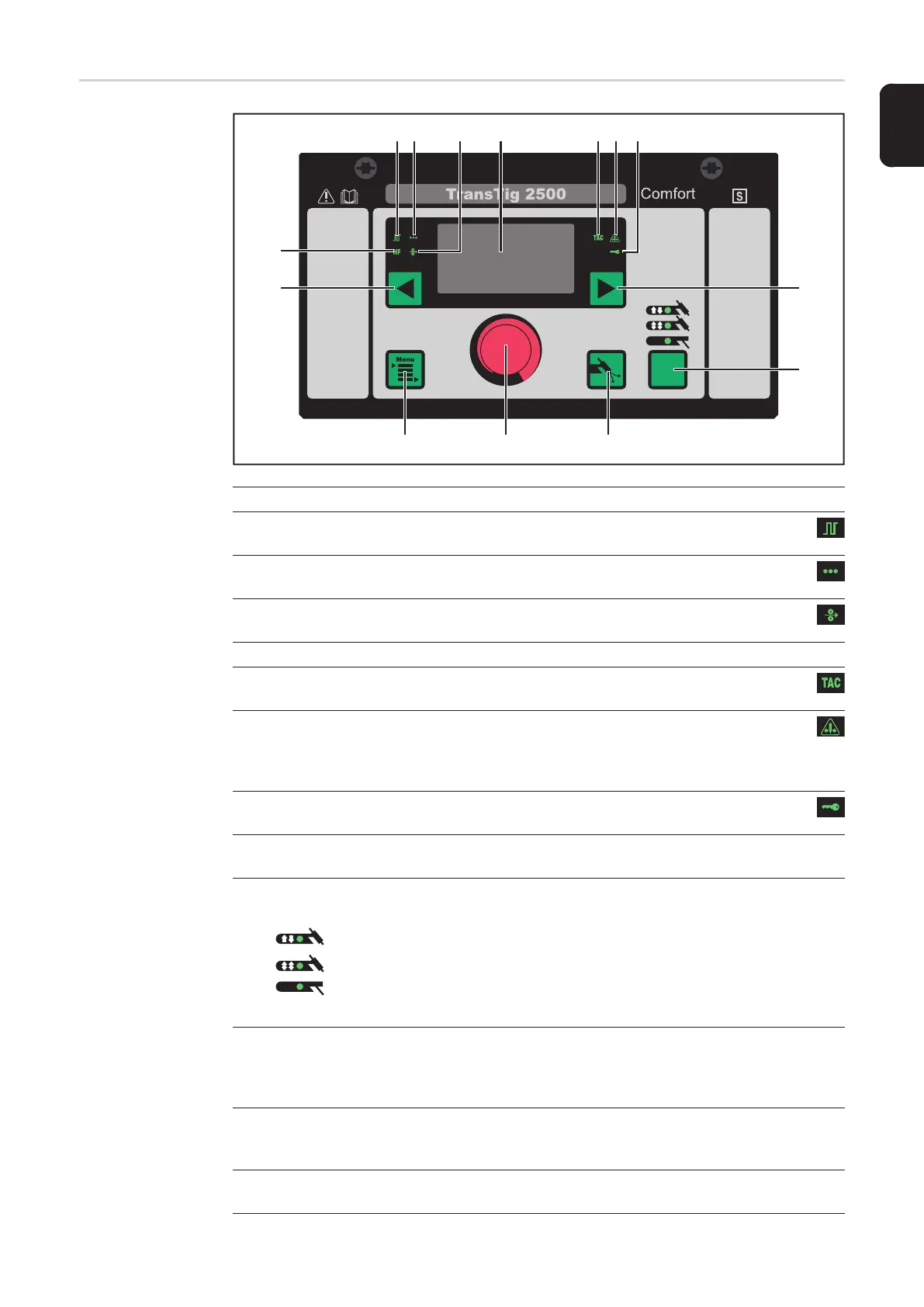

Comfort control
panel
No. Function
(1) Pulse indicator
lights up when the F-P set-up parameter has been set to a pulse frequency
(2) Spot welding indicator
lights up when the SPt set-up parameter has been set to a spot welding time
(3) Cold wire-feed unit indicator
lights up when a cold wire-feed unit is connected
(4) Display
(5) Tacking indicator
lights up when the tAC set-up parameter has been set to a period of time
(6) Electrode overload indicator
lights up if the tungsten electrode is overloaded
See section on TIG welding in Chapter "Welding mode" for more information
on the electrode overload indicator.
(7) Keylock indicator
lights up when the keylock is activated
(8) Right arrow key
for navigating in the menu
(9) Mode button
for selecting the mode
2-step mode
4-step mode
Manual metal arc welding
When a mode is selected, the LED on the relevant symbol lights up.
(10) Gas test button
for setting the required shielding gas flow rate on the gas pressure regulator
After pressing this button, gas flows for 30 seconds. Press the button again to stop
the gas flow prematurely.
(11) Adjusting dial
- Turn the adjusting dial to: select welding parameter
- Press the adjusting dial to: confirm a selection in a menu, accept values
(12) Menu button
for calling up the menu in the selected process
(3)
(11)
(6)
(8)
(1)
(10)
(9)
(4)
(13)
(12)
)7()5()2(
(14)
