MagicWave

2500 / 3000 Job

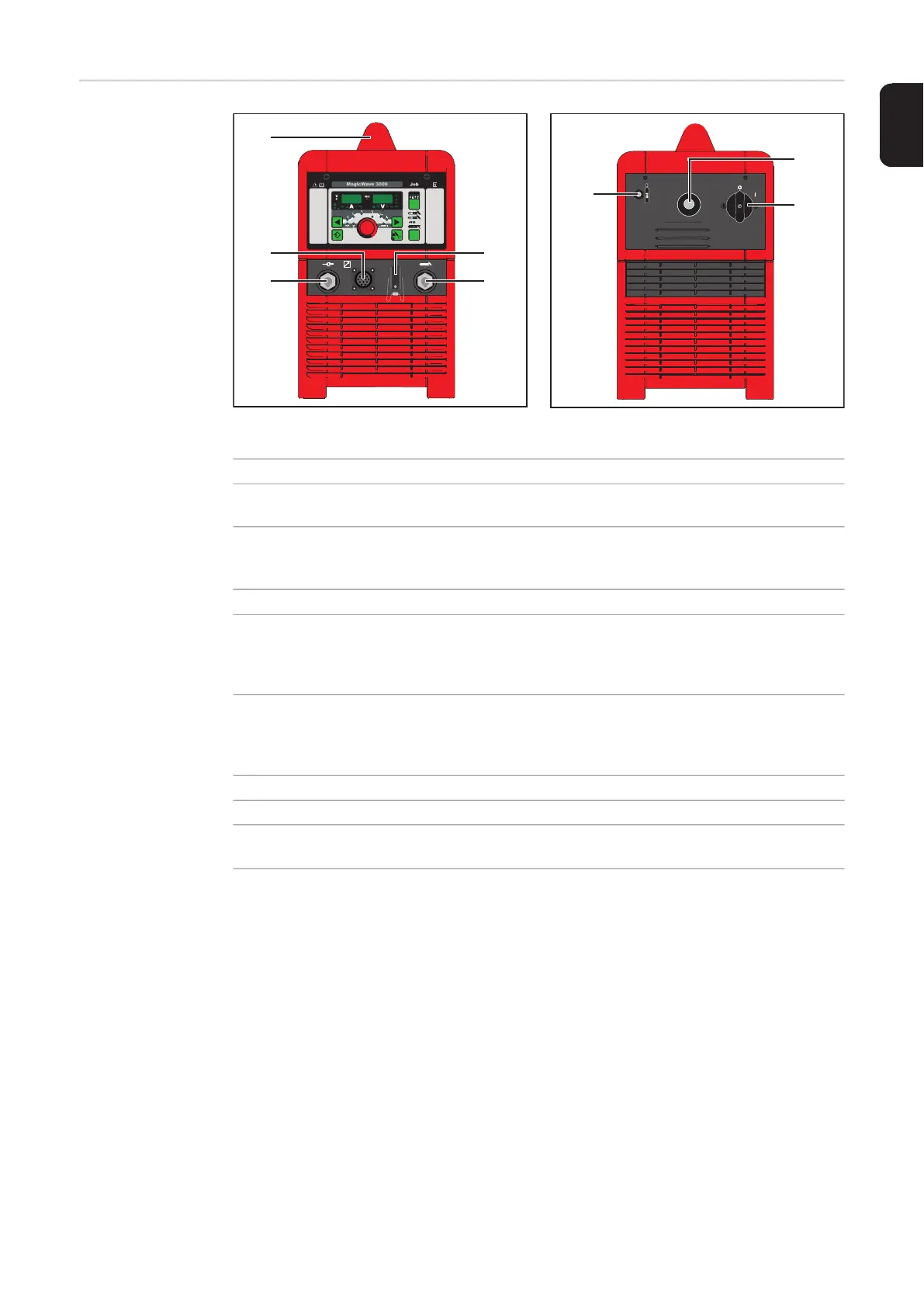

MagicWave 2500 / 3000 Job - front MagicWave 2500 / 3000 Job - rear

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

No. Function

(1) Grounding (earthing) cable connection

for connecting the grounding (earthing) cable

(2) LocalNet connection

standardised connection socket for system add-ons (e.g. remote control, JobMas-

ter TIG welding torch, etc.)

(3) Handle

(4) Torch control connection

- for connecting the control plug of a conventional welding torch

- input for the collision protection signal when a robot interface or field bus cou-

pler is connected

(5) Welding torch connection

for connecting:

- the TIG welding torch

- the electrode cable for manual metal arc welding

(6) Shielding gas connection

(7) Mains cable with strain relief device

(8) Mains switch

for switching the power source on and off
